Overview

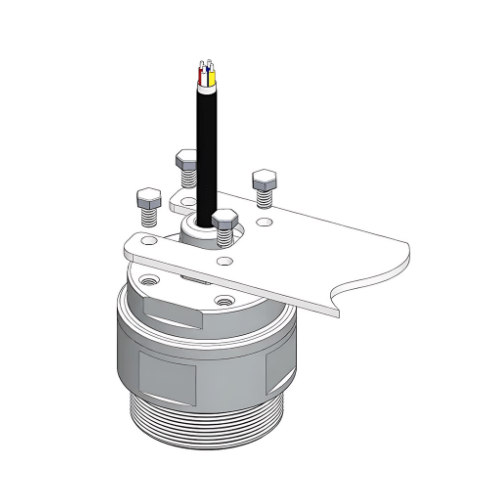

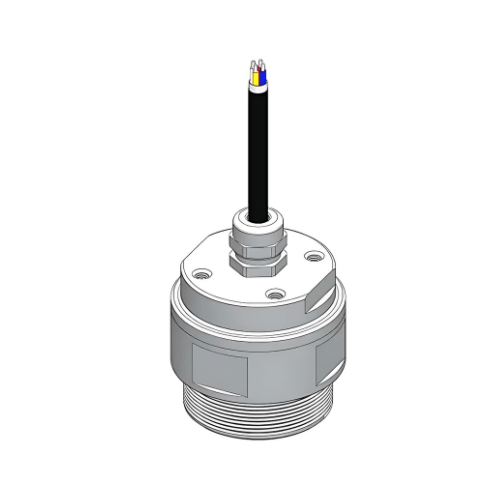

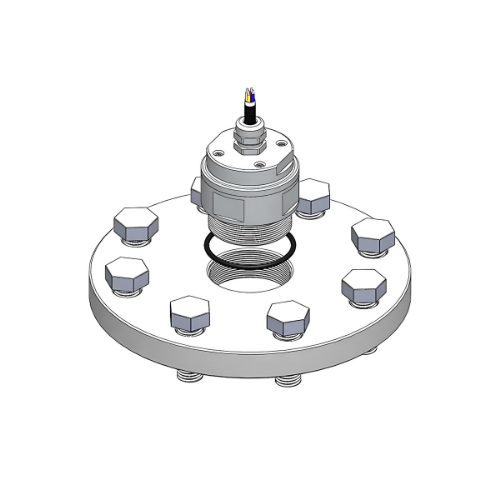

Enviro Test Construct radar level meter is a frequency modulation continuous wave radar level meter has a measurement range of 7.5 meters, 15 meters and 30 meters, which is suitable for the measurement of most small and medium tanks and inspection wells. The RS485 Modbus interface of the equipment is the output of the standard level gauge, and the user does not need to change the code of the acquisition equipment, which has a high cost performance and effectively reduces the cost of the solution for the integrator.
Technical Specifications
| Model | XYRT 101 |
| Measuring range | 24.60 in or 49.21 in x 98.42 in (7.5 m or 15 m or 30 m) |
| Precision | ± 0.19 in (± 5 mm) |
| Beam angle | ≤ 4° |
| Digital interface | RS485 Modbus |
| Interface parameters | 115200, 8N1 or custom |
| Antenna material | PTFE or HDPE |
| Process connection | M52X1.5 |
| Carrier frequency | 120 GHz |
| Power input | 8 V to 30 V |
| Measurement interval | 0.4 s to 6000 s or custom |
| Shell material | SS316L |
| Protection degree | IP67 |
| Process temperature | -31 °F to 185 °F (-35 ℃ to 85 ℃) |
