Overview

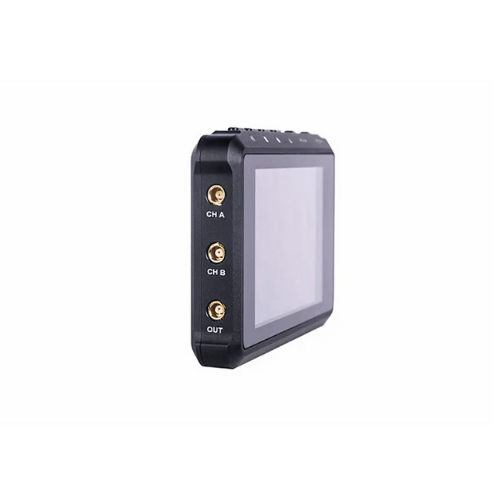

Enviro Test Construct professional digital oscilloscope is a “5-track, 4-wave line” digital storage oscilloscope for general-purpose electronic engineering task and it is based on ARM Cortex M3 core. This product uses FPGA to manage external ADC’s control and data cache mode. It provides 4 application partitions for loading and upgrading up to 4 different application firmware. It also has built-in 8MB USB flash drive for storing waveforms and upgrading system firmware. The oscilloscope code application layer is open source, and users can develop oscilloscope firmware according to their needs.
Features
- Mini size, light weight, portable and handheld
- It can store waveforms, making waveform analysis clearer and more effective
- Multiple triggers, support Ascend or Descend Edge Trigger, Positive or Negative Pulse
- Trigger, and Logic Trigger
- Powerful ability to process waveforms
- It can automatically measure parameters such us voltage, frequency and pulse width
Technical Specifications
| CPU | ARM Cortex M 3 |
| FIFO & Control | FPGA |
| Analog Channels | 2 ([CH_A] [CH_B]) |
| Digital Channels | 2 ([CH_C] [CH_D]) |
| Operation Channel | INV [CH_A], INV [CH_B], [CH_A]+[CH_B], [CH_A]-[CH_B],[CH_C]&[CH_D],[CH_C] | [CH_D] |
| Vertical Sensitivity | 10 Mv to 10 V/div (1 to 2 to 5 STEP) (using X1 probe) |
| Vertical Resolution | 8 bits |
| Sample Memory Depth | 4 channels, 4 K x 4 K |
| Max Input Voltage | ±40 Vpp (using X1 probe) ±400Vpp (using X10 probe) |
| Signal Source | Square Wave: 10 Hz to 8 MHz, in total 20 shifts and 3 Vpp Signal Sources; |
| Sine or Triangle or Sawtooth Wave | 10 Hz to 20 MHz, in total 11 shifts and 3 Vpp Signal Sources |
| Storage | Built in 8 M USB disk |
| Display Modes | Line 3: [CH_C], REC_1, REC _2, REC _3, REC _4, HIDE Line 4: [CH_D], [CH_A] + [CH_B], [CH_A]-[CH_B], [CH_C] and [CH_D], [CH_C] | [CH_D], HIDE |
| Sampling Rate | 100 M Sa/s |
| Battery | 1000 mAh |
| Size | 3.9 in x 2.3 in x 0.5 in (99.5 mm x 58.5 mm x 13.5 mm) |
| Weight | 0.28 Ib (0.129 Kg) with battery |
