Features
- Digital sensor
- RS-485 output
- standard Modbus protocol
- 90°Scattering light principle

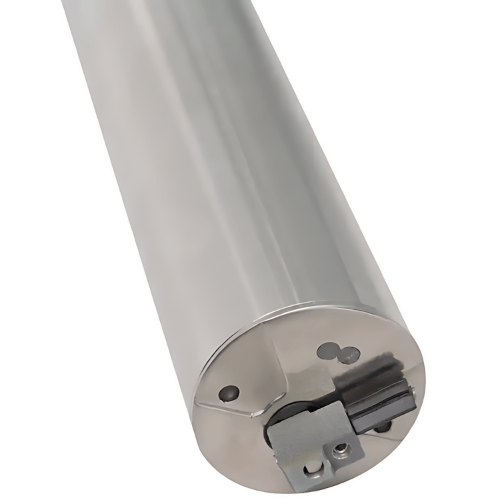

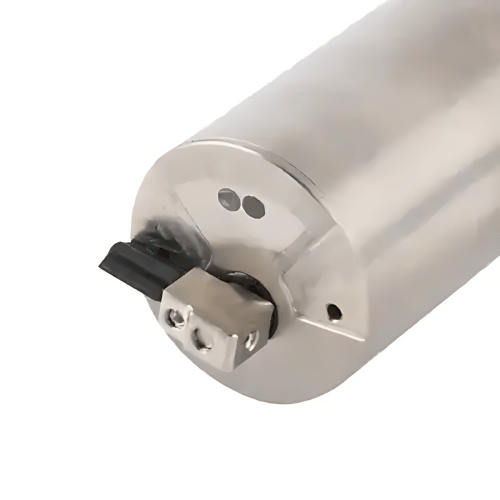

- Sapphire optical window
- Excellent repeatability and stability
Technical Specifications
| Principle | 90° light scattering method |
| Range | 0.1 NTU to 1000 NTU |
| Resolution | 5% or 0.3 NTU |
| Housing IP Rating | IP68 |
| Maximum pressure | 3bar |
| Temperature range | 0 ℃ to 50 ℃ |
| Power Requirements | DC 12 V to 24 V, current<100 mA |
| Sensor Size | Φ36mm x 198.2mm |
| Construction | 3/4 in NPT |
| Probe cable length | 10 m (default), customizable |
