Features

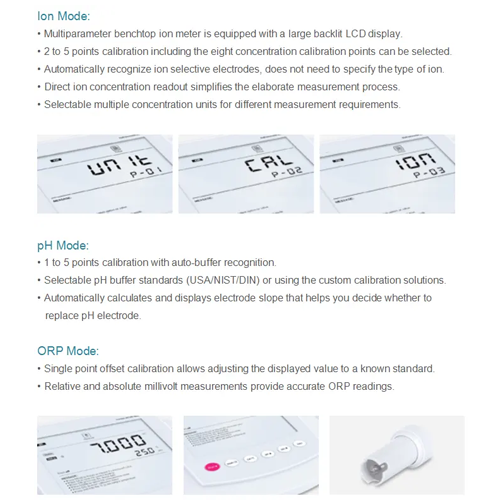

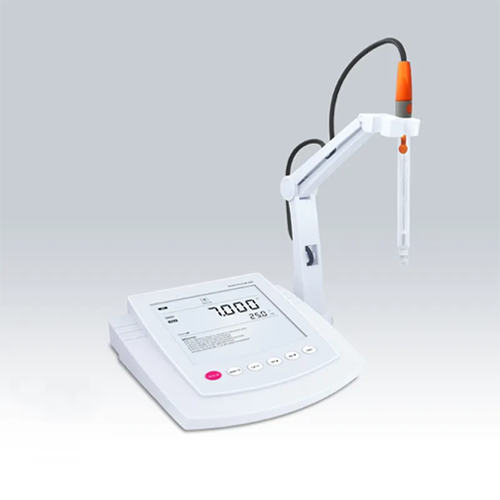

● Multiparameter benchtop ion meter is equipped with a large backlit LCD display
● 2 to 5 points calibration including the eight concentration calibration points can be selected
● Automatically recognize ion selective electrodes, does not need to specify the type of ion
● Direct ion concentration readout simplifies the elaborate measurement process
● Selectable multiple concentration units for different measurement requirements
● 1 to 5 points calibration with auto-buffer recognition
● Selectable pH buffer standards (USA / NIST / DIN) or using the custom calibration solutions
● Automatically calculates and displays electrodes slope that helps you decide whether to replace pH electrode
● Single point offset calibration allows adjusting the displayed value to a known standard
● Relative and absolute millivolt measurements provide accurate ORP readings
Technical specifications
| Range | – 2.00 pH to 20.000 pH |
| Accuracy | +- 0.002 pH |
| Resolution | 0.1 pH, 0.01 pH, 0.001 pH |
| Calibration Points | 1 to 5 points |
| Calibration solutions | USA, NIST, DIN standards |
| Temperature Compensation | 32 °F to 212 °F (0 °C to 100 °C) |
| Compensation Mode | Manual or Automatic |
| Range | – 1999.9 to 1999.9 mV |
| Accuracy | +- 0.2 mV |
| Calibration Points | 1 point |
| Calibration Range | +-200 mV |
| Range | 0.001 to 19999 ppm, mg / l, mol / L |
| Accuracy | +- 0.5% F.S, +-1% F.S |
| Resolution | 0.001, 0.01, 0.1, 1 |
| Calibration Points | 2 to 5 points |
| Calibration Solutions | 0.001, 0.01, 0.1, 1, 10, 100, 1000, 10000 ppm, mol / L, mg / L |
| Range | 32 °F to 221 °F (0 to 105 °C) |
| Calibration Range | +-14 °F to 212 °F (- 10 °C to 100 °C) |
| Temperature units | °F or °C |
| Hold Functions | Manual or Automatic |
| Stability conditions | Low or high |
| Calibration Due | 0 to 31 days |
| Power off | Manual or Automatic (10, 20, 30 minutes) |
| Reset function | yes |
| Memory | Stores up to 500 data sets |
| Output | USB communication interface |
| Connector | BNC |
| Display | LCD 5.12 in x 4.33 in (130 mm x 110 mm) |
| Power requirements | DC 5 V, using AC adapters, 220 V AC / 50 Hz |
| Dimensions | 8.27 in x 7.4 in x 2.36 in (210 mm x 188 mm x 60 mm) |
| Weight | 2.31 lb (1.5 Kg) |
