Overview

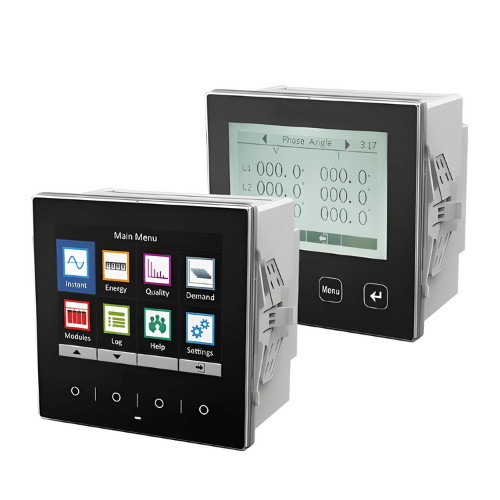

Enviro Test Construct power quality analysis thermometer has energy metering, power quality analysis, and electrical variable measuring features. To monitor and control equipment in the field, achieve system integration with various smart energy management and distribution systems, and share monitoring and energy data, Sfere720 may also be expanded with I/O modules.
Features
- MB memory, 32,000pcs record
- Accuracy: 0.2S
- Measurement: full electrical measuring
- Harmonics: up to 51st

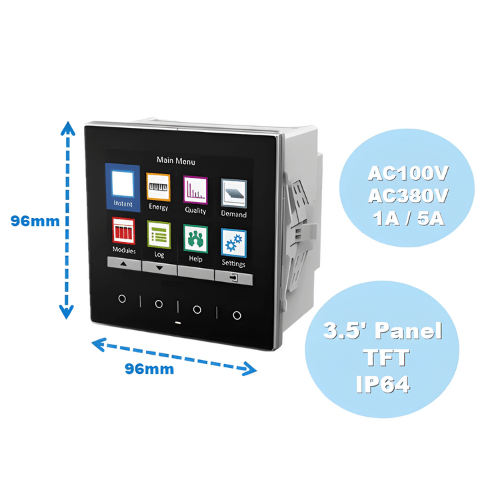

- Display: TFT

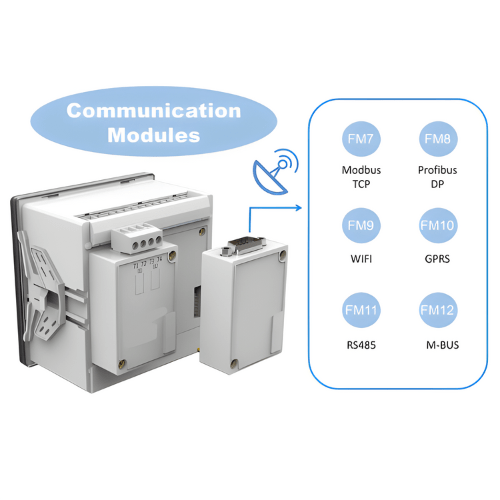

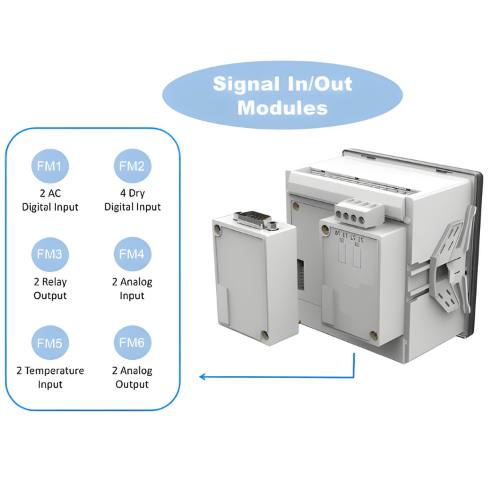

- Modular design: 12 optional modulars available
Technical Specifications
| Accuracy | 0.2% |
| Voltage Input | 45Hz to 65Hz |
| Current Input | <0.2VA |
| Auxiliary Supply | AC 80V to 270V, 50 Hz to 60Hz |
| Relay Output | 2 relay output, AC 5A 30V |
| Operating Temperature | -13℉ to 158℉ (-25℃ to 70℃) |
| Storage Temperature | -22℉ to 176℉ (-30℃ to 80℃) |
| Relative Humidity | <93% |
| Attitude | <2500 m |
