Overview

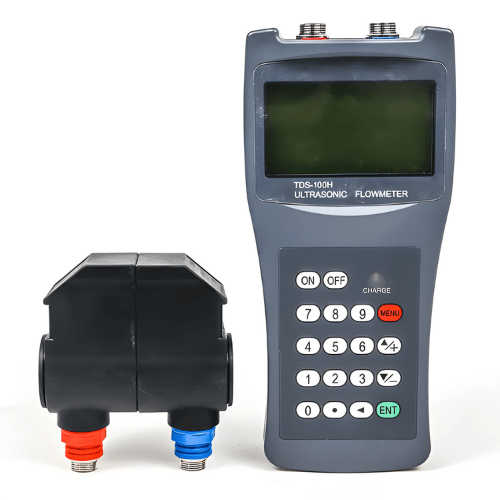

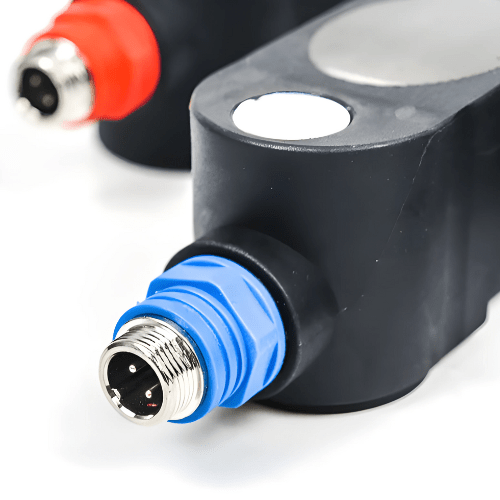

Enviro Test Construct portable ultrasonic flow meter is designed for measuring the fluid velocity of a liquid within a closed conduit. The non-contacting, clamp-on transducers offer advantages such as non-fouling operation and easy installation. The meter employs two transducers that serve as ultrasonic transmitters and receivers. Positioned at a specific distance on the outside of a closed pipe, these transducers operate by alternately transmitting and receiving a frequency-modulated burst of sound energy between them. The transit time measured directly correlates with the liquid velocity in the pipe, providing accurate flow measurements. The mounting method (V, W, or Z) is selected based on pipe and liquid characteristics.
Technical Specifications
| Velocity | ±32 m/s |
| Pipe Size | 0.590 in to 236.22 in (15 mm to 6000 mm) |
| Totalizer | 7 digit total for net, positive and negative flow respectively |
| Liquid Types | Virtually all liquids |
| Security | Setup values Modification Lockout. Access code needs unlocking |
| Communication Interface | RS 232, baud-rate from 75 to 57600. Protocol made by the manufacturer and compatible with that of the FUJI ultrasonic flow meter. User protocols can be made by user requirements |
| Transducer Cord Length | Standard 5 m x 2, optional 10 m x 2 |
| Power Supply | 3 AAA built-in Ni-H batteries, When fully recharged it will last over 12 hours of operation, 100 V to 240 V AC for the charger |
| Data Logger | Built-in data logger can store over 2000 lines of data |
| Manual Totalizer | 7 digit press key to go totalizer for calibration |
| Housing Material | ABS |
| Case Size | 8.26 in × 3.54 in × 1.18 in (210 mm x 90 mm x 30 mm) |
| Main Unit Weight | 17.63 oz (500 g) |
