Overview

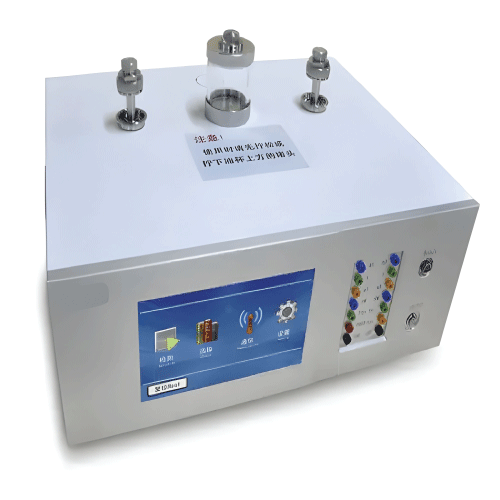

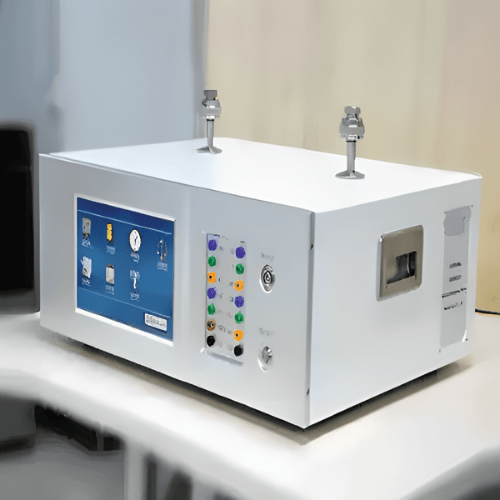

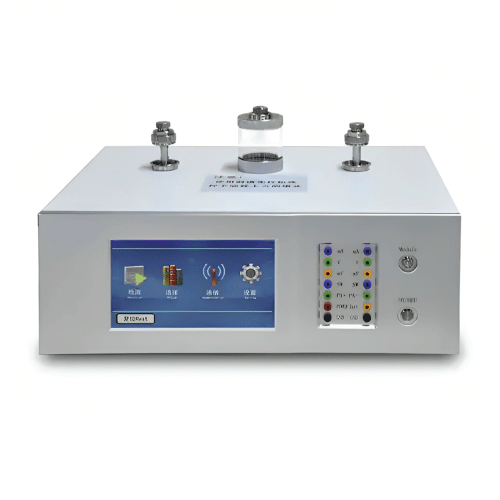

Enviro Test Construct portable temperature process calibrator has instrument calibration system which is designed with blue LCD and keys, showing the high-end design concept and accurate control. The automatic calibration system can be controlled by keyboard or upper computer freely. No matter what kind of control, it can realize the automatic verification function and realize the automatic verification of instruments. It can be used for the calibration of pressure gauge and pressure gauge with reasonable structure.
Features
- The double closed-loop control scheme of pressure
- Pressure change rate is adopted
- It’s convenient to set the pressure output, fast
- Stable to control the pressure without overshoot
- Meets the verification regulations of relevant pressure instruments
- Automatic pressure making system has anti-overload protection
- It can be switched automatically or manually
- Function of combining automatic control and fine adjustment
- Conductive to the verification of pointer pressure gauge
- Real time display
- Computer software touch screen
- Verifiable Hart pressure transmitter
Technical Specification
| Pressure Range | Micro pressure type -10 kPa to 10 kPa Barometric type -0.095 MPa to 0.6 MPa or 2.5 MPa or 4 MPa or 6 MPa Hydraulic type 0 MPa to 60 MPa |
| Pressure Stability | Micro pressure type 0.01% F.S / s Barometric type 0.001% F.S / s Hydraulic type 0.01% F.S / s |
| Working Medium | Micro pressure type air Barometric type air Hydraulic type oil or purified water |
| Holding Time | Micro pressure type ≤15 sec Barometric type ≤10 sec Hydraulic type ≤15 sec |
| Current Measurement | 0 mA to 30 mA |
| Voltage Measurement | 0 V to 30 V |
| Accuracy | 0.02% F.S + 0.003% RD |
| DC Output | DC 24 V ±0.5 V |
| Accuracy | DC 24 V ±0.5 V |
| Size (W x D x H) | 22.83 in x 17.71 in x 8.66 in (580 mm x 450 mm x 220 mm) |
| Weight | 6.61 lb (3 kg) |
