Overview

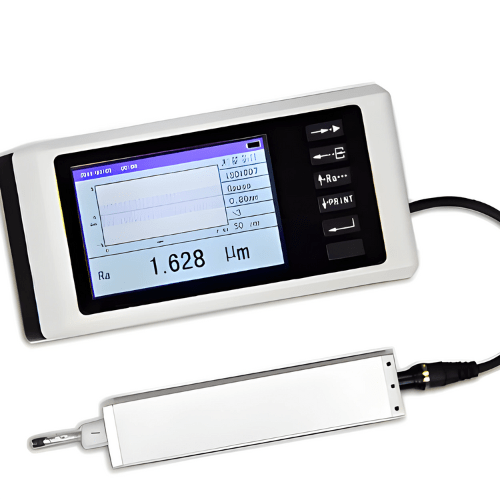

The Enviro Test Construct Portable Surface Roughness Tester is a portable surface roughness tester that offers high precision and versatility. It uses an inductive sensor to measure roughness parameters on various surfaces, including flat, cylindrical, curved, and even small holes and grooves. The device features a 4-digit LCD with blue backlight, USB and Bluetooth data output, and can store up to 100 groups of data. It’s lightweight and ideal for on-site inspections of large workpieces and production lines. This tester is a valuable tool for quality control in manufacturing, machining, and testing departments. It comes with a 12-month warranty.
Features
- Inductive sensor for precise surface measurements
- Versatile on various surfaces, including curved and small areas
- 4-digit LCD with blue backlight
- USB and Bluetooth connectivity options
- Stores up to 100 data groups
- Lightweight for on-site inspections
- Quality control tool in manufacturing and testing
Technical Specifications
| Display | 4 digits, 10 mm LCD, with blue backlight |
| Parameters | Ra, Rz |
| Ra Range | 0.05-10.00um/1.000-400.0uinch |
| Rz Range | 0.020-100.0um/0.780-4000uinch |
| Accuracy | Not more than 10% |
| Function Of Display Value | Not more than 6% |
| Test Principle | Inductance type |
| Radius Of Probe Pin | 10um |
| Material Of Probe Pin | Diamond |
| Measurement Force Of Probe | 16mN (1.6gf) |
| Probe Angle | 90° |
| Vertical Radius Of Guiding Head | 48mm |
| Max. Driving Stroke | (17.5mm) 0.7inch |
| Cutoff Length (l) | 0.25mm or 0.8mm or 2.5mm optional |
| Evaluation Length | 1 to 5 cut off optional |
| Driving Speed | 1. Sampling length = 0.25mm Vt=0.135mm/s 2. Sampling length = 0.8mm Vt=0.5mm/s 3. Sampling length = 2.5mm Vt=1mm/s 4. Returning Vt=1mm/s |
| Resolution | 1. 0.001μm if reading 10μm 2. 0.01μm if 10μm≤reading 100μm 3. 0.1μm if reading ≥100μm |
| Power Li-ion Battery | Rechargeable |
| Operating Conditions | Temperature: 32°F to 122°F (0 to 50 °C), Humidity: <80% |
| Size | 5.51 in x 2.24 in x 1.89 in (140 mm x 57 mm x 48 mm) |
| Weight | 0.926 lbs (420 g) |
