Technical Specification
| Output Current | 100 A, 80 A, 50 A, 30 A |
| Measuring Range | 100 A 0 µ Ω to 2000 µ Ω |
| 80 A 0 m Ω to 5 m Ω | |
| 50 A 0 m Ω to 10 m Ω | |
| 30 A 0 m Ω to 20 m Ω | |
| Accuracy | ± (Reading × 0.5% + 1 µ Ω) |
| Test Power Supply | Constant current limit voltage, about 2 V |
| Input Voltage | Maximum 5 V |
| working Power Supply | Built-in lithium battery or external charger, Charger input 100 V AC to 240 VAC, 50 HZ or 60 HZ |
| Display Type | Digital Only |

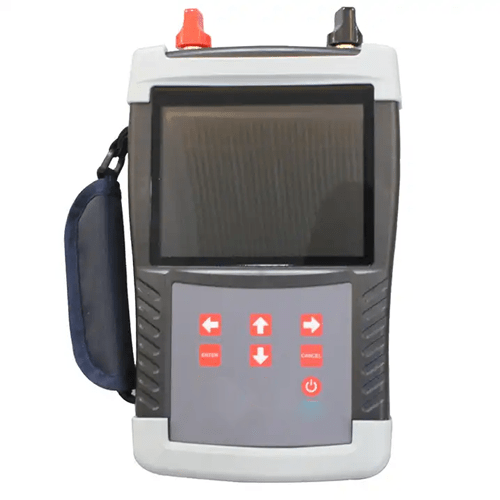

| Product Define | 100 A Loop Resistance Tester |
| Output Current | More than 100 A when tested in 2 m Ω |
| Testing Time | Quick test, 10 s, 20 s, 30 s, 40 s, 50 s, 60 s |
| Test Range | 0.1 u Ω to 2 m Ω |
| Resolution | 0.1 u Ω |
| Precision | ± (0.5% + 2 digit) |
| Temperature | 32 °F to 122 °F (0 ℃ to 50 ℃) humidity <80% |
| Protective tube | Plug-in 40 A |
| Dimension | 9.5 in x 5.9 in x 1.6 in (240 mm x 150 mm x 40 mm) |
| Weight | 2.2 lb (1 kg) |
