Overview
Enviro Test Construct portable micro ohmmeters are high precision with wide-range, adopt high performance 32-bit ARM microprocessor control, can make measurement on real time automatically. can make precision measurement to power supply devices at any place. Resistance test range 10 μΩ to 200 kΩ, Max display 20000 dgt with temperature compensation function. can guarantee 0.1% accuracy even under the test speed of 15 times or sec, And the reading jitter is controlled below 3 words.
Technical Specifications
| Accuracy | 0.1% |
| Range | 10 μΩ to 200 kΩ |
| Signal Source | Max current: <1A current mode: high |
| Range | 7 range auto, manual & nominal |
| Speed | 3 times or sec |
| Display Result | compare way: ABS, PER, SEQ) |
| Max Display | 20000 dgt |
| Adjustment | Short circuit zero adjust for each range |
| Comparator | build in sorting record, OK or NG sorting result; display |
| Trigger | Internal; Manual |
| Test Lead | 4 terminal shielding (2 check and 2 driving terminal) External shielding ground section |
| Interface | Build -in Mini-USB (VCP) |

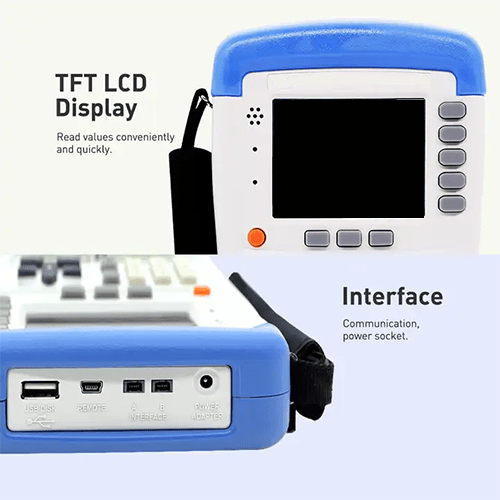

| Others | 3.5 in (8.89 cm) color 16M TFT-LCD display; keypad lock, data hold function; Compatible SCPI order set; Switch in Chinese or English; Adjustable background display; Auto power-off; U disk recording function; |
| Power Supply | input:100 V to 240 V to 50 Hz or 60 Hz 0.35 A; output: 9 V 1A DC |
| Battery Parameters | 8.4 V, Li, 2200 mAh rechargeable battery |
| Charging Time | Max charging time:300Min |
| Working Time | ≥8 hrs |
| Size | 5.12 in x 8.2 in x 1.49 in (130.23 mm x 210.76 mm x 37.88 mm) |
| Weight | 1.43 lb (650 g) |
