Overview

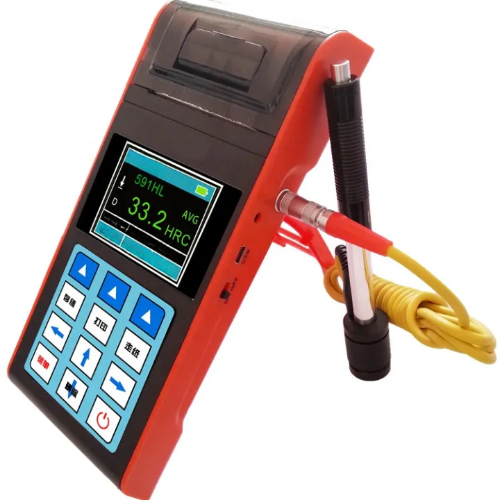

Enviro Test Construct portable leeb durometer hardness tester suit for machining industry, especially suitable for on-site hardness testing of large parts and non-detachable parts.
Features
- Built-in printer, can print testing results any time
- Window menu style, true color display
- Two hardness scale dual display in same time
- Add customized material function, no limitation of measured materials
- Test at any angle, even upside down, narrow space also available to use
- User calibration function
- Seven impact devices are available for special application. Automatically identify the type of impact devices
Technical Specifications
| Measuring Materials | Steel and cast steel, alloy tool steel, stainless steel, gray cast iron, nodular cast iron, cast aluminum alloy, copper zinc alloys (brass), copper and tin alloy, copper (bronze), forged steel |
| Indication Error | ± 6 HLD (D impact device) |
| Measuring Direction | 360° |
| Hardness Scale | HL, HB, HRB, HRC, HRA, HV, HS |
| Display | 128 x 64 digital matrix LCD |
| Data Memory | Max 600 groups (relative to impact times 1 to 32 adjustable) |
| Power | Rechargeable li-battery |
| Working Temperature | -4 °F to 131 °F (-20°C to 55°C) |
| Size | 8.26 in x 3.34 in x 1.77 in (210 mm x 85 mm x 45 mm) |
| Weight | 1.32 lb (600 g) |
