Overview

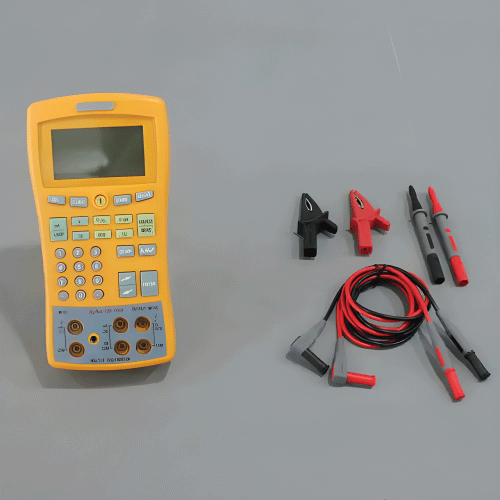

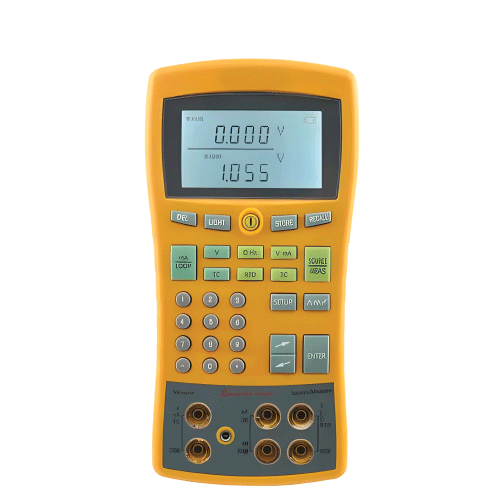

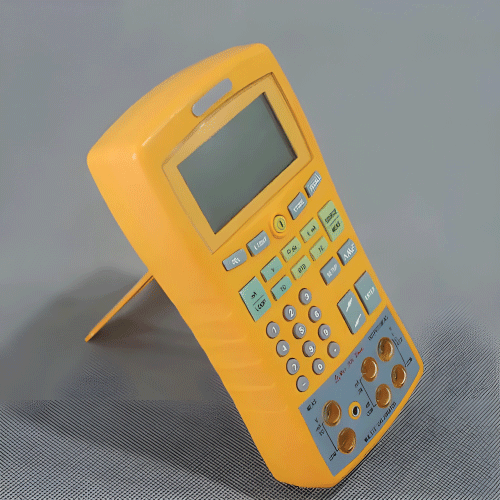

Enviro Test Construct portable high precision temperature process calibrator is a handheld, battery-powered instrument that measures and sources a variety of parameters. It can be widely applied in industrial fields and laboratories.
Features
- A split-screen display
- Counting pulse function
- Calibration functions
- Auto ramping and auto stepping
- Manual and automatic cold junction compensating
- Clear function
- Temperature unit switching
- Auto flashing jacks
- Backlight LCD
- Battery gauge
Technical Specification
| V DC | 0 V to 30 V or 0 V to 20 V or 0 V to 10 V |
| mV DC | 0 mV to 100 mV or 0 mV to 100 mV or 0 mV to 100 mV |
| mA DC | 0 mA to 24 mA or 0 mA to 24 mA |
| Current Loop | 0 mA to 24 mA |
| Transmitter Signal | 0 mA to 24 mA |
| Counting pulse | 0 to 99999 |
| Frequency | 1 Hz to 10000 Hz or 1 Hz to 5000 Hz |
| Resistance | 0 Ω to 3200 Ω or 15 Ω to 3200 Ω |
| Thermocouple | J, K, T, E, R, S, B, N |
| RTD | Cu 50, Pt 100 (385) |
