Name: Enviro Test Construct Portable Fluoride Chlorine Ion Meter -
SKU: ETCMIMM-205

Technical Specifications

F Ion Concentration Range	1×10^-6 M to saturation, 0.02ppm to saturation
CL Ion Concentration Range	5×10^-6 to 1M, 1.8 ppm to 35500 ppm
Ca Ion Concentration Range	5×10^-7 to 1M, 0.02 ppm to 4000 ppm
Na Ion Concentration Range	1×10^-5 to 1M, 0.1 ppm to 23000ppm
Ion Concentration Range	7×10^-6 to 1M, 0.4 ppm to 62000ppm
Br Ion Concentration Range	5×10^-6 to 1M, 0.4 ppm to 79900ppm
NH₄ Ion Concentration Range	5×10^-6 to 1M, 0.1 ppm to 18000ppm
Cn Ion Concentration Range	5×10^-6 to 0.01M, 0.2 ppm to 260ppm
Cd Ion Concentration Range	1×10^-6 to 0.1M, 0.01 ppm to 11200ppm
Cu Ion Concentration Range	1×10^-8 to 0.1M, 0.006 ppm to 6400ppm
I Ion Concentration Range	5×10^-8 to 1M, 0.06 ppm to 127000ppm
Pb Ion Concentration Range	1×10^-8to 0.1M, 0.2 ppm to 20700ppm
Ag Ion Concentration Range	1×10^-7 to 1M, 0.01 ppm to 107900ppm
K Ion Concentration Range	1×10^-6 to 1M, 0.04 ppm to 39000ppm
S Ion Concentration Range	1×10^-7 to 1M, 0.003 ppm to 32100ppm
NH₃ Ion Concentration Range	1×10^-6 to 1M, 0.02 ppm to 17000ppm
Ion Concentration Resolution	0.001, 0.01, 0.1, 1
Ion concentration Accuracy	±0.5% F.S.
Ion Concentration Calibration Points	2 to 5 points
Ion Concentration Calibration Solutions	0.001, 0.01, 0.1, 1, 10, 100, 1000, 10000
Ion Concentration Measurement Units	ppm, mg/L, mol/L, mmol/L
mV Range	±1999.9 mV
mV Resolution	0.1 mV
mV Accuracy	±0.2 mV
Temperature Range	32 °F to 221 °F (0 °C to 105°C)
Temperature Resolution	0.18°F (0.1 °C)
Temperature Accuracy	±0.9 °F (±0.5 °C)
Temperature Offset Calibration	1 point
Temperature Calibration Range	Reading 50 °F (±10 °C)
Temperature Compensation	32 °F to 212°F (0 °C to 100°C), manual or automatic
Stability Criteria	Low or high
Calibration Due Alarm	1 to 31 days or off
Auto-Power Off	10, 20 or 30 minutes after last key pressed
Memory	Stores up to 500 data sets
Output	USB communication interface

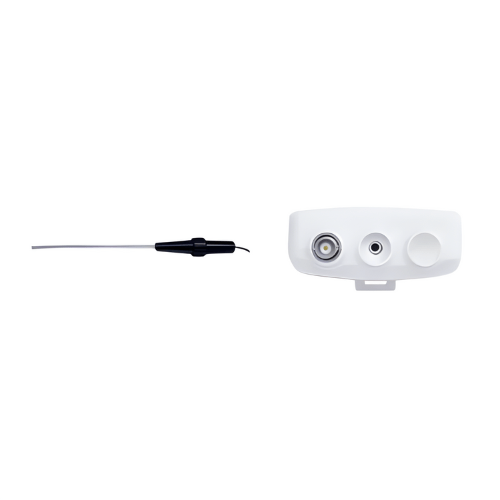

Connector	BNC, 3.5 mm jack socket
Display	Custom LCD (80 mm x 60mm)
Power	3×1.5 V AA batteries or DC 5 V power adapter
Battery Life	Approximately 150 hours (turn off the backlight)
Temperature Range	32 °F to 221° F (0 °C to 105°C)
Dimensions	6.69 in × 3.35 in × 1.18 in (170 mm × 85 mm × 30 mm)
Weight	0.66 lb. (300 g)
