Overview

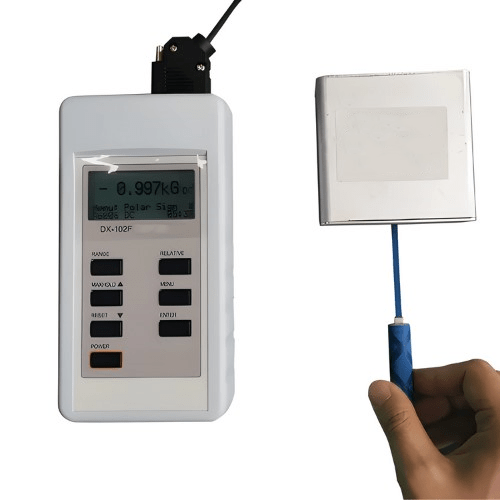

Enviro Test Construct portable electromagnetic radiation detector is used for measuring the surface magnetic field of permanent magnets and the working magnetic field of DC motor and magnetic separators.
Features
- White backlight FSTN LCD display
- Automation calibration zero
- Charging using standard USB interface
- Provide complete command set
- Temperature coefficient
- Universal all-copper/glass fiber package
Technical Specifications
| Test Resolution | 10 G, 1 G, 0.1 G |
| DC Accuracy | (2% reading +0.05% range) at 77 °F to 50 °F (25 °C to 10 °C) |
| Rate Of Reading | 10 readings / s |
| AC Range | ±3.6 kG, ±1.2 kG, ±120 G RMS |
| AC Display Resolution | 2 ¾, 3 ½, bit |
| AC Accuracy | ±3% reading at 77 °F to 50 °F (25 °C to 10 °C) (30 Hz to 10 kHz, sinusoidal wave) |
| Rate Of Reading | 5 readings / s |
| Power | 1850 mAh lithium polymer battery |
| Temperature Coefficient | (0.05% reading + 0.02 G) / °C at 77 °F to 50 °F (25 °C to 10 °C) |
| Weight | 15.87 oz (450 g) |
