Features
- Electromechanical integration design, small volume, light weight, easy to use
- Using DSP chip to control and data processing, high speed, low power consumption
- Large range, parameters Ra, Rz, Rq, Rt, Rp, Rv, R3z, R3y, RzJIS, Rsk, Rku, Rsm, Rmr, Rx

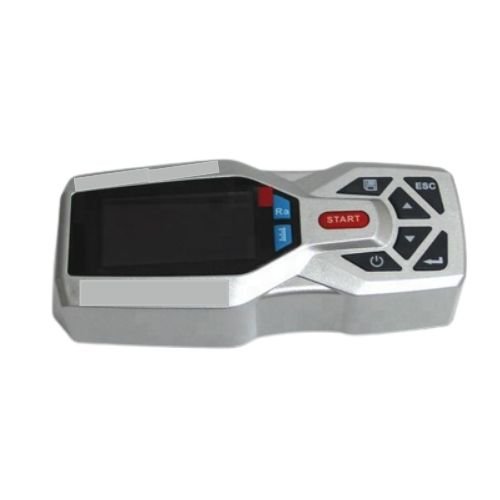

- 128 x 64 OLED dot matrix display, digital / graphic display; highlight no perspective
- Display information rich, intuitive, can display all the parameters and graphics
- Compatible with ISO, DIN, ANSI, JIS national standard
- Built-in lithium-ion rechargeable battery and a charging control circuit, high capacity, no memory effect
- Residual quantity indicator icon, prompting the user to charge
- Display of the charging process instructions, the operator can understand the degree of charge
- Working time more than 20 hours of continuous work
- Large capacity data memory, can store 100 groups of original data and waveform
- Real-time clock settings and display, convenient data recording and storage
- With automatic dormancy, automatic shutdown and power saving function
- Reliable control motor to go dead circuit and software design
- Measurement information display, menu prompt information, false information and switch machine and other tips that information
- Full metal shell design, sturdy, compact, portable, high reliability
- Can be connected to a computer and printer
Technical Specifications
| The maximum driving trip | 0.68 in (17.5 mm) |
| Indicating error | Not more than ± 10% |
| Variation of indication | Not more than 6% |
| The measured profile | Roughness, waviness, the original contour |
| Parameter | Ra (0.005 μm to 16 μm),Rz (0.02 μm to 160 μm),Rq, Rt, Rp, Rv, R3z, R3y, RzJIS, Rsk, Rku, Rsm, Rmr, Rx. |
| Filter | RC, PCRC, Gauss, ISO13565 |
| The sampling length L | 0.009 in, 0.03 in, 0.09 in, 0.3 in (0.25 mm, 0.8 mm, 8 mm) |
| Evaluation length L | 1 L to 5 L |
| Internal storage capacity | 100 groups of original data |
| External input / output interface | USB |
| Electric source | Built-in rechargeable lithium-ion battery or external power adapter |
| Outline dimension | 5.62 in x 2.16 in x 1.65 in (143 mm x 55 mm x 42 mm) (host). |
| Weight | 0.88 lb (0.4 kg) |
