Overview

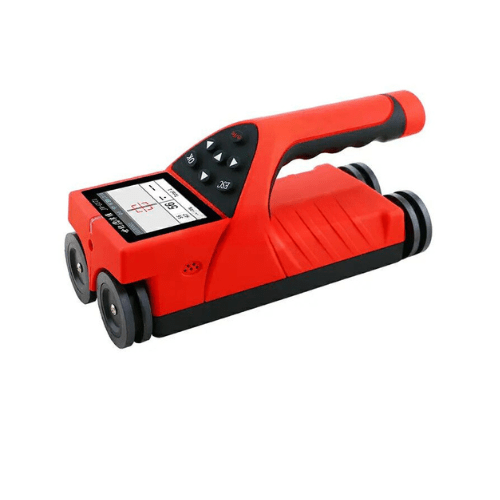

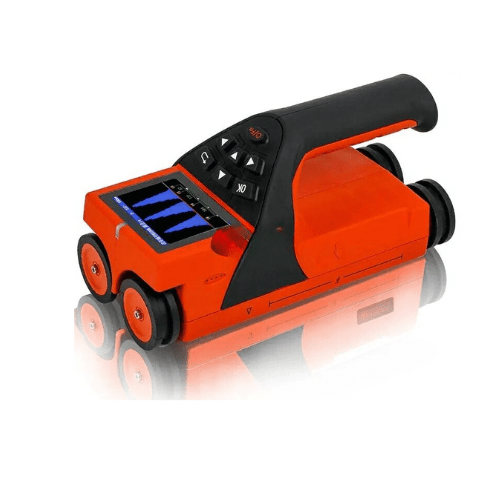

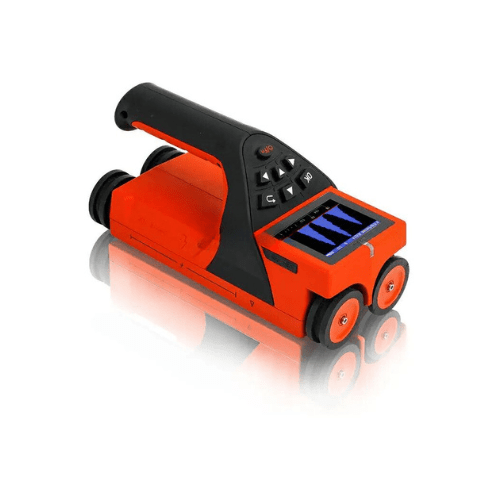

AOTek portable concrete steel crack detector is mainly used for detecting the internal reinforcement position, the protective layer thickness, reinforcement spacing and diameter of rebar. It can accurately draw the distribution map of the whole rebar, to provide test data with high precision and high speed; the integrated structure of the host and the sensor coil, making it convenient and quick when carrying and field operation.
Technical Specifications
| Maximum Error of Diameter Measurement (Specification) | ±1 |
| Applicable range of Rebar | Φ 0.236 in (6 mm) to φ 19.69 (50 mm) |
| Protective layer thickness range | Small range 3.937e-2 in to 3.15 in (1 mm to 80 mm) Large range 0.1869 in to 7.283 in (5 mm to 185 mm) |
| Maximum Allowable Error of Protective Layer Thickness | ±1% 3.937e-2 in to 2.362 in (1 mm to 60 mm) ±2% 2.402 in to 3.937 in (61 mm to 100 mm) ±3% 3.976 in to 4.724 in (101 mm to 120 mm) ±5% 4.764 in to 6.299 in (121 mm to 160 mm) ±8% 6.339 in to 7.283 in (161 mm to 185 mm) |
| Applicability of Diameter Measurement | 0.236 in to 1.969 in (6 mm to 50 mm) |
| Scanning mode | Thickness model, JGJ Testing |
| Scanning range | Borderless |
| JGJ Testing | Achieve single point 1-6 measurements, automatically calculate the average |
| Data transmission mode | USBwireless |
| Screen | 2.8 in High Resolution Color LCD Screen (320 pixels x 240 pixels) |

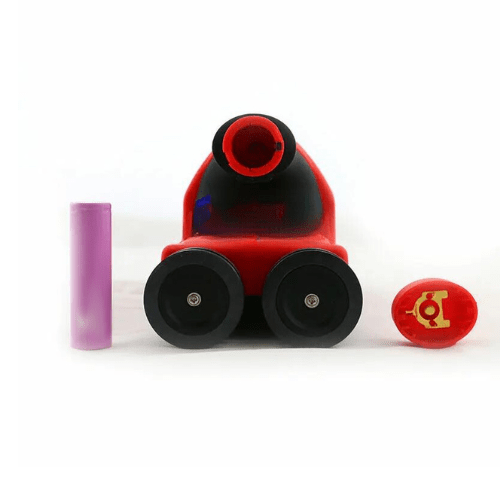

| Power supply | Built in high-capacity lithium battery |
| Set shutdown time | 5 min, 10 min, 15 min, 30 min, 60 min, 90 min |
| Working hours | ≥16 hr |
| Storage | 200 K Measuring point of steel bar |
| Communication | USB interface |
| With error correction | -3.0 to +3.0 (±0.5, ±1.0, ±1.5, ±2.0, ±2.5, ±3.0) |
| Operation | Silicone keypad |
| working temperature | 14°F to 107.6 °F (-10 °C to 42 °C) |
