Overview
Enviro Test Construct portable combustible gas detector are to quickly and accurately detect gas leaks or gas concentration exceeding the alarm limit. The main detection principles of gas detection are electrochemical, infrared, catalytic combustion, thermal conductivity, PID photoionization, etc. This is widely used in firefighting, emergency rescue, confined space, petroleum, chemical industry, metallurgy, refining, gas, storage, medicine, environmental protection, air treatment and other occasions.
Features
- Built in pump suction measurement, can be switched to diffusion
- Pump clogging alarm
- LED lighting (optional)
- Unit free switching, unit optional: umol or mol, ppm, pphm, ppb, mg per m3 etc
- 8 key operation, quick one key calibration function
- Data storage, storage capacity of not less than 100,000 items
- Communication interface: TYPE C, option: Bluetooth Fall alarm
- Data recovery function, part or all of the factory data recovery
- Maximum value, minimum value, weighted average value display
- Alarm mode setting Alarm mode: sound and light alarm, vibration alarm, voice alarm
- Alarm type: Concentration alarm, under pressure alarm, fault alarm
- Mis operation recognition function, concentration
- Zero point auto tracking, avoiding zero point drift
- Multi-level calibration of target point
- Intrinsically safe circuit design, explosion proof, shock-proof, anti static etc
- Protection class IP68, rain, and immersion, dustproof, anticorrosive
Technical Specifications
| Detection Factor | Single gas (carbon monoxide CO, hydrogen sulphide H2S, oxygen O2, combustible gas Ex, carbon dioxide CO2, VOC, etc.), depending on the site environment and user requirements |
| Detection Range | Depends on the site environment and user needs |
| Resolution | 0.001 ppm (0 ppm to 10 ppm high accuracy) or 0.01 ppm (0 ppm to 10 ppm); 0.01 ppm (0 ppm to 100 ppm), 0.1 ppm (0 ppm to 1000 ppm), 1 ppm (0 ppm to 1000 ppm or more); 0.1% LEL; 0.1%, 0.01% Vol |
| Detection Principle | Electrochemical, catalytic combustion, infrared, thermal conductivity, semiconductor, PID photoionization, etc., depending on the range, site environment and user needs |
| Sensor life | Electrochemical 2 years to 3 years, catalytic combustion 2 years to 3 years, infrared 510 years, thermal conduction 2 years to 5 years, PID 2 years to 3 years |
| Measuring method | Built in pump suction, can be switched to diffusion, diffusion + pump suction detection mode |
| Display | LCD |
| Display content | Real time concentration, unit, gas name, alarm status, time, storage status, communication status, power, charging status, etc. |
| Operating power supply | DC 3.7 V x 2 |
| Battery capacity | 2500 mAh rechargeable polymer battery, with over charge, over discharge, over voltage, short circuit, overheating protection function. |
| Communication Interface | Standard Type C (2 hours fully charged) |
| Data storage | Standard capacity of not less than 100,000 items; support for local view, delete or data export, storage time interval arbitrary settings |
| Interface language | Chinese, English, and other languages can be customized |
| Explosion-proof type | Intrinsically safe ExiaⅡCT4Ga |
| Protection class | IP68 |
| Housing material | High strength corrosion resistant fire resistant polycarbonate and rubber protective cover, drop proof wear resistant antistatic, effective drop resistance ≥ 5 meters |
| Standard accessories | Calibration cover, pump suction nozzle, manual, certificate of conformity, USB charger (including data cable), instrument packaging colour box |

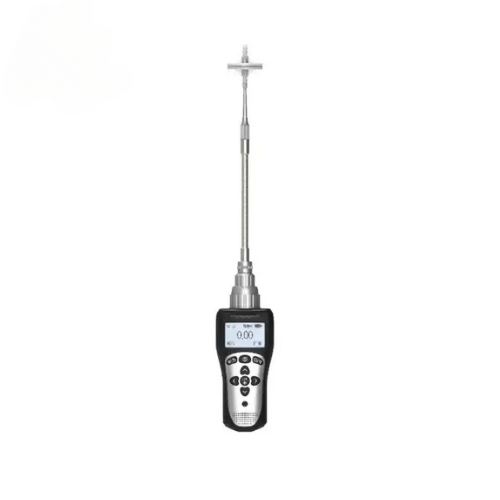

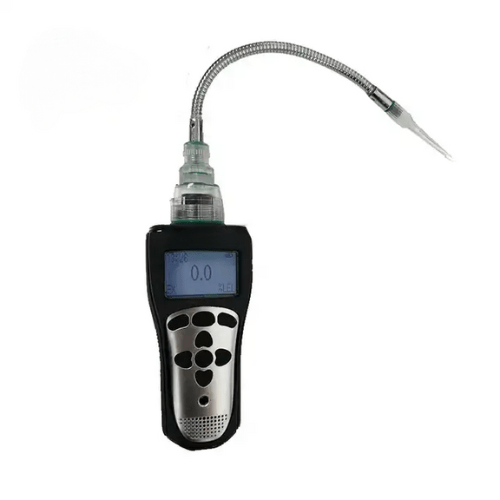

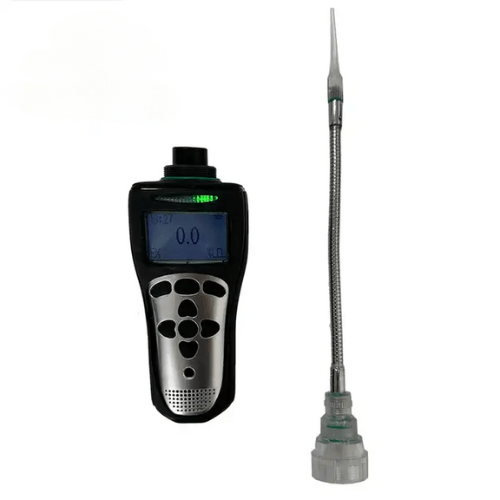

| Optional accessories | ① 0.2 meters swan neck sampling probe ② activated carbon filter ③ 0.4 meters stainless steel sampling handle (including 1 meter hose) ④ 0.9 meters retractable sampling handle (including 1 meter hose) ⑤ External Bluetooth printer |
| Environment | Temperature: -4 °F to 140 °F (-20 ℃ to 60 ℃) customizable: -40 °F to 158 °F (-40 ℃ to 70 ℃) Relative humidity: 10% RH to 95% RH |
| Dimension | 6.57 in x 2.51 in x 2.44 in (167 mm x 64 mm x 62 mm) |
| Weight | 0.61 lb (0.28 kg) |
