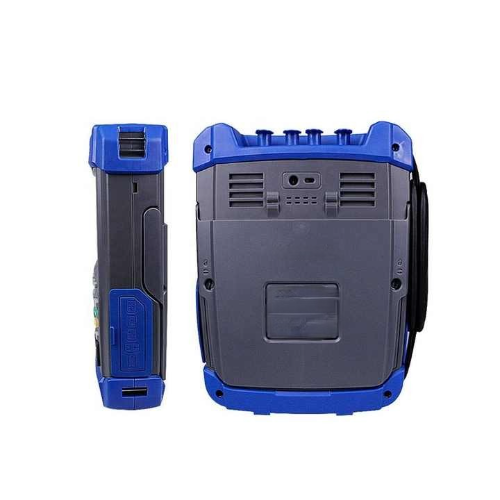

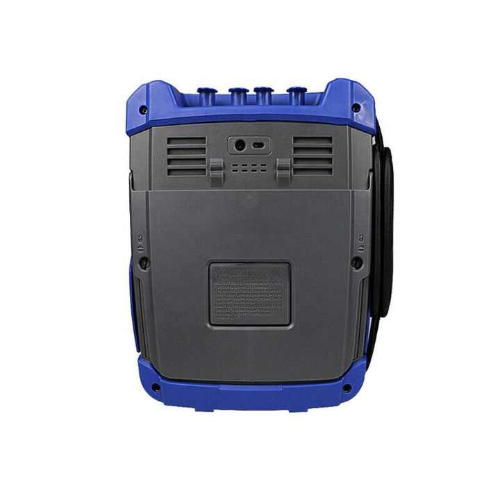

Name: Enviro Test Construct Portable Analog and Digital Oscilloscope Scope Meter -
SKU: ETCMOS-105

Features

High bandwidth 200 MHz Oscilloscope, 1 GSa/s sample rate, 2 M Memory depth
6000 Counts DMM, AC or DC voltage, AC or DC current, resistance, break, capacitance, and diode function
Large 5.6-inch TFT Color LCD Display High Resolution
USB Host or Device 2.0 full-speed interface, support removable disk, WIFI or LAN Option, easy to control by PC or long-distance
Waveform data can be output in WORD, EXCEL, BMP, and JPG as time and voltage

Technical Specification

Sample Modes	Real-Time Sample
Normal	Normal data only
Peak Detect	High-frequency and Randon glitch capture
Average	Waveform Average, selectable 4, 8, 16, 32, 64, 128
Inputs
Inputs Coupling	AC, DC, GND
Inputs Impendence	1 MΩ ± 2 % or 20 pF ± 3 pF
Probe Attenuation	1 X, 10 X
Supported Probe Attenuation Factor	1 X, 10 X, 100 X, 1000 X
Maximum Input Voltage	CAT I and CAT II: 300 VRMs (10 ×), Installation Category;
	CAT III: 150 VRMs (1 ×)
Horizontal System
Sample Rate Range	1 GS/s
Waveform Interpolation	(Sin x)/x
Record Length	78.74 in (2 m)
SEC/DIV Range	4 ns/div to 2000 s/div, in a 2, 4, 8 sequence		2 ns/div to 2000 s/div, in a 2, 4, 8 sequence
Sample Rate and	± 50 ppm over any ≥ 1 mm’s time interval
Delay Time Accuracy
Scanning Speed Range	4 ns/div to 8 ns/div; (-8 div x s/div) to 40 mms;		2 ns/div to10 ns/div;(-4 div × s/div) to 20 mms;
	20 ns/div to 80 μs/div;(-8 div × s/div) to 40 mms;
	200 μs/div to 40 s/div;(-8 div × s/div) to 400s;
Delta Time Measurement Accuracy	Single-shot, Normal mode: ± (1 sample interval +100 ppm × reading + 0.6 ns);
(Full Bandwidth)	>16 averages: ± (1 sample interval + 100 ppm × reading + 0.4 ns);
	Sample interval = s/div ÷ 200
Vertical System
Vertical Resolution	8-bit resolution, all channel sampled simultaneously
Volts Range	2 mV/div to 100 V/div at input BNC
Bandwidth	70 MHz	100 MHz	150 MHz	200 MHz
Rise Time at BNC (typical)	5 ns	3.5 ns	2.3 ns	1.8 ns
