Overview

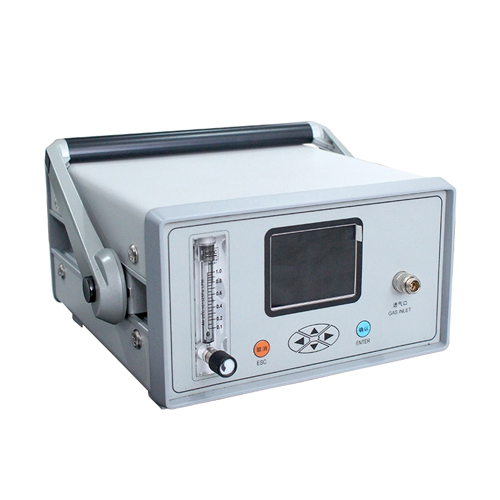

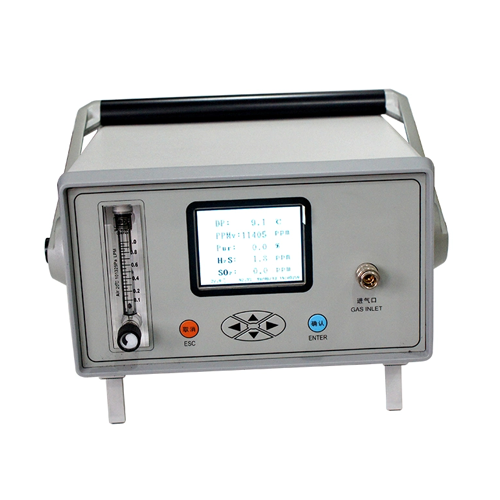

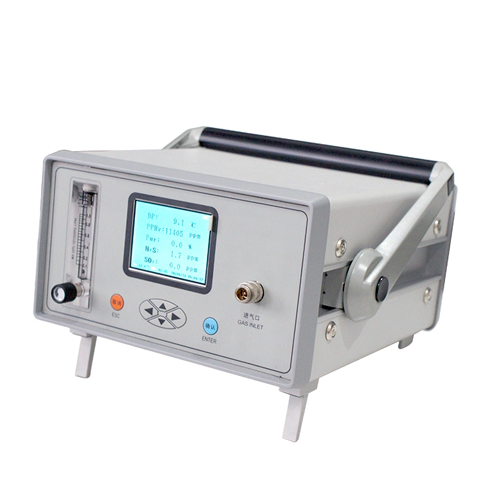

Enviro Test Construct SF6 comprehensive tester is a state-of-the-art instrument that combines the testing functions of humidity and purity of SF6 gas into one device. Unlike traditional methods that require separate instruments for each test, this comprehensive tester integrates all necessary functions into a single instrument, making on-site measurements more efficient and cost-effective. With the Enviro Test Construct SF6 comprehensive tester, users can perform three essential tests with just one device, namely, humidity measurement, SF6 gas purity analysis, and temperature compensation.
Features
- Humidity of SF6:
- Measurement range: Dew point: -112 to 68 F (-80 to +20ºC) (support ppmv and so on)
- Precision of dew point:±0.5 ºC
- Resolution ratio: dew point 0.1ºC or 0.1ppm
- Repeatability: ±0.5 ºC
- Flow of gas: when measuring humidity:0.8 to 0.9L/min, when measuring purity:0.5~0.7L/min
- The electric quality flow meter, the flow speed of the sample gas will not be influenced.
- Pressure measurement:0 to 1.0MPa
- Probe protection: stainless steel sintered filter
- Purity of SF6:
- Range: 0 to 100% SF6;
- Precision and repeatability: ±0.5%, have nothing to do with the flow;
- SF6 decomposition products
- Gas measurement range: H2S:1 ppm to 200 ppm
- SO2: 1 ppm to 200 ppm
- CO: 1 ppm to 1000 ppm
- Sensitivity: 0.1 ppm
Technical Specifications
| Type | Sf6 Gas Analyzer |
| Precision and Repeatability | ±0.5%, Have Nothing to Do with The Flow |
| Output Interface | USB 1.1 Specification |
| Precision of Dew Point | 32.9 °F (±0.5 ºC) |
| Resolution Ratio | Dew Point 0.1 ºC or 0.1 ppm |
| Specification | CE/ISO/IEC |
| Gas | Sf6 |
| Gas Measurement Range | H2s: 1 ppm to 200 ppm |
| Pressure | 0 psi to 290.075 psi (0 bar to 20 bar) |
| Work Voltage | 220 VAC ±10% 50 Hz |
| Repeatability | 32.9 °F (±0.5 ºC) |
| Measurement Range | Dew Point: -112 °F to 68 °F (-80 ºC to 20ºC) |
