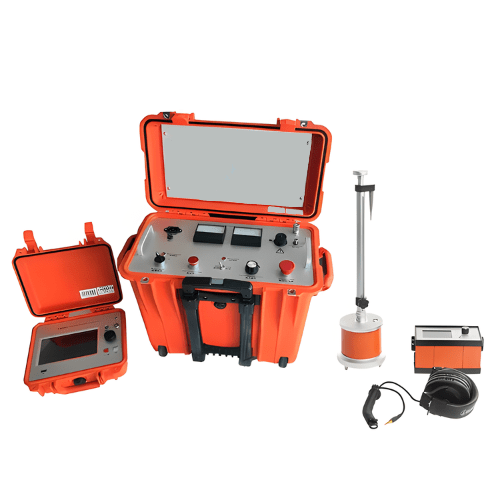

Name: Enviro Test Construct Pipe Cable Fault Locator -
SKU: ETCBDGFL-201

Technical Specifications

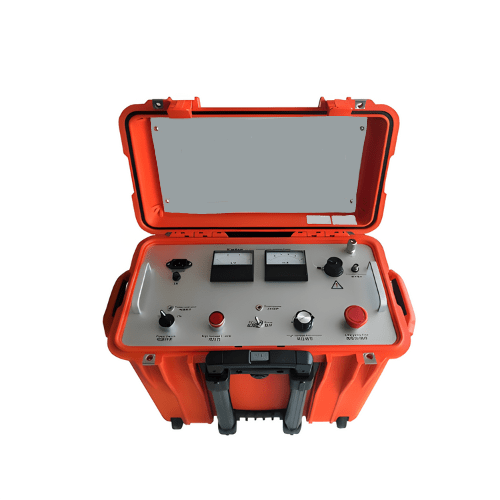

DC Voltage Output	0 kV to 30 kV continuously adjustable
Max Charging Current	30 mA
Max Discharge Energy	900 J
Output Mode	Pulse and DC
High Voltage Pulse Time Interval	4s, not adjustable (to guarantee charging time)
Polarity Of Output Voltage	Negative polarity
Power Supply	AC 220 V, 50 Hz
LED Lighting	Providing illumination for dark environments
Output Power	Peak: 3000 W
Capacity	1 kVA
Arc Delay Voltage Output	1600 V
Arc Delay Time	50ms
Allowable Impact Voltage	0 kV to 35 kV
Allowable Impact Energy	2000 J
Outer Sheath DC Test	0 kV to 10 kV
Pulse Width	20 ns to 10 μs
Pulse Amplitude	10 V to 60 V
Wave Speed Regulation	150 m/us to 300 m/us
Sampling Frequency	200 MHz
Screen Display	7 in colour 480 x 800, backlight touch screen
Screen Brightness	800 cd/m2
Ranging Scope	0 km to 100 km
Pre-Location Method	Low voltage pulse method, pulse current method, direct ﬂash method, secondary pulse method
Memory	32G SSD
Dead Zone	20 m
Max Resolution	10.4 m
Impedance Automatic Matching	10 Ω to 500 Ω adjustable, adaptive adjustment
Power Supply	Lithium battery

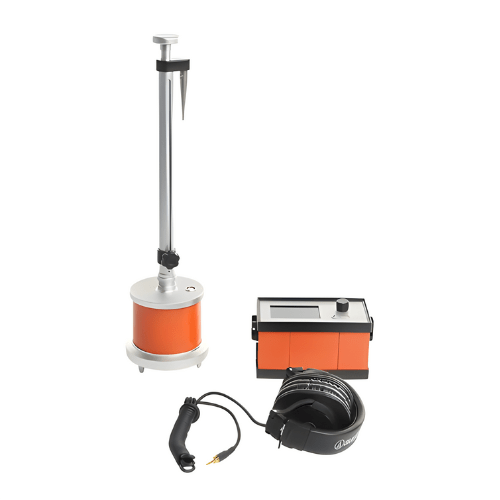

Dynamic Range	Magnetic channel>99dB; Acoustic channel>99dB
Precision Of Fault Point Location	0.1 m
Precision Of Path Location	0.1 m
Precision Of Step Voltage Method	0.1 m All-pass: 100 Hz to 1500 Hz Low pass: 100Hz to 400 Hz
Filter Range	Band pass: 400 Hz to 800 Hz High-pass: 800 Hz to 1500 Hz
Gain	80 dB, freely adjustable
Acoustic Magnetic Time Diﬀerence Display	1ms to 60 ms, historical records are displayed synchronously
Auto Mute	ARM automatic mute function, pin -pointing more comfortable
Mode	Anti-noise mode: strong noise reduction mode, background suppression noise reduction mode
Display Mode	Colour LCD
Power Supply	Lithium battery, 12h standby
Operation Temperature	-4 °F to 122 °F (-25 ℃ to 50 ℃)
Size	19.7 in x 12 in x 18 in (500 mm × 305 mm × 457 mm)
Weight	70.5 lb (32 kg)
