Overview

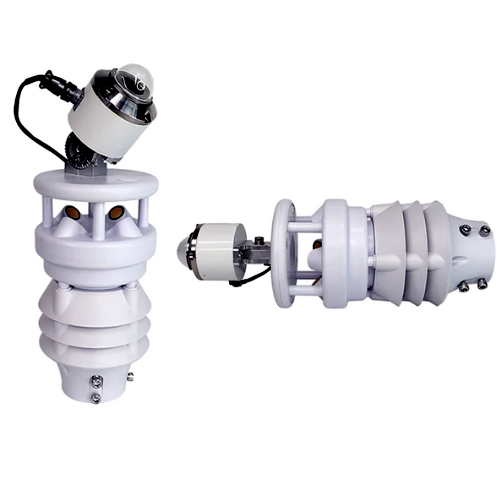

Enviro Test Construct Photovoltaic wireless solar radiation sensor is an instrument applied in the field of photovoltaic power stations and new energy monitoring. The product indicatively integrates all meteorological parameters that need to be monitored in the operation and maintenance management of photovoltaic power stations into one structure, which can be measured at the same time: Ambient Temperature, Relative Humidity, Component Temperature, Wind Speed, Wind Direction, Atmospheric Pressure, Total Solar Radiation POA and Total Daily Cumulative Radiation amount.
Features
- Small in size
- Integrated design
- High integration
- Compact structure with no moving parts
- Easy to install
- One year warranty
- Protective cover with special process heat insulation treatment
- Support extended parameter measurement
- Free testing software XF_PcSoftV1.0 (ask your salesperson for it)
Technical Specifications
| Ambient Temperature | -40 ℉ to 185 ℉ (-40 ℃ to 85 ℃) |
| Relative Humidity | 0 % RH to 100 % RH |
| Component Temperature | -4 ℉ to 176 ℉ (-20 ℃ to +80 ℃) |
| Wind Speed | 0 m/s to 60 m/s |
| Wind Direction | 0° to 359.9° |
| Atmospheric Pressure | 500 hPa to 1100 hPa |
| Total Solar Radiation POA | 0 W/m2 to 2000 W/m2 |
| Maximum Output Frequency | Passive Mode: 1/S Active Mode: 1/min |
| Power Supply | DC 12 V to 24 V |
| Solar Radiation Gauge Adjustment Panel | Adjustable Range: 0° to 60° (General Standard Selection 40°) |
| Level of Protection | IP 65 |
| Mounting Manner | Standard Product is sleeve fixed (Optional: matching parts, extra costs apply, see Accessory and Parts) |
| Fixed Trestle | Optional: 59.1 in or 70.9 in (1500 mm or 1800 mm) (extra cost apply) |
| Cable | 118.1 in (3000 mm) cable line (Optional: 10-meter cable line available for extra cost ) |
| Operating Temperature | -40 ℉ to 176 ℉ (-40 ℃ to 80 ℃) |
