Overview

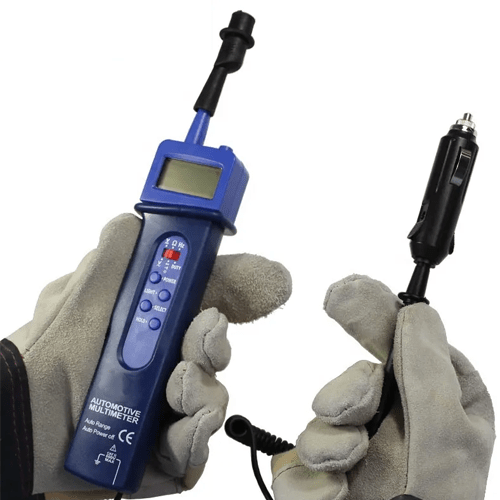

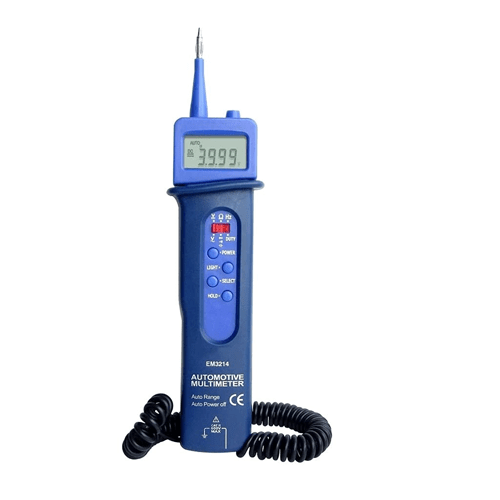

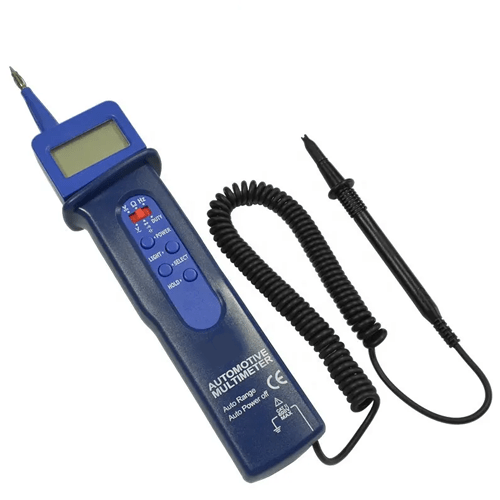

Enviro Test Construct pen ohm meter is a compact pen probe typed, 3 1/2 bit and auto ranged digital multimeter which is powered by a battery. Used for testing DC or AC voltage, Resistance, diode, capacitance, frequency, duty cycle, and continuity test. Power circuit designed based on LSI. Has a stable operation. Variety of functionality such as data hold, over-range indication, automatic power-off, LED illumination, etc. Also, simply in operation. It is a terrific digital multimeter for daily electric work.
Features
- 8 functions
- Auto range
- Overrange protection for all ranges
- The max, permitted voltage is 600 DC or AC rms.
- Altitude < 1.24 mi (<2000 m)
- LCD Display
- displayed value is 3999.
- Overrange indication is “OL’ or “-OL.”
- Polarity indication is “-” for negative polarity.
- Auto power off in 15 minutes without operation
- Low battery indication A battery icon shown on display.
Technical Specification
| Measuring Current Range | 0 |
| Measuring Voltage Range | 400 mV to 600 V |
| Measuring Resistance Range | 400 Ω to 40 MΩ |
| Measuring Capacitance Range | 4 nF to 100 uF |
| Mode | Auto range |
| Display | LCD, 3999 |
| Auto Power Off | 15 Min |
| Power Supply | triple-A battery x 2 |
| Voltage DC | 400 mV or 4V or 40 V or 400 V or 600 V |
| Voltage AC | 4 V or 40 V or 400 V 600 V |
| Resistance | 400 or 4 k or 40 k or 400 k or 4 M or 40 MΩ |
| Frequency | 9.999 or 99.99 or 999.9 9.999k MHz or 99.99k MHz or 999.9k MHz or 10 MHz |
| Capacitance | 4 n or 40 n or 400 n or 4 u or 40 u or 100 uF |
| Duty Cycle | 0.1 % to 99 % |
| Diode Check | 1.5 V or 1 mA. |
| Operation Temperature | 32 °F to 104 °F (0 °C to 40 C) |
| Storage Temperature | 14 °F to 122 °F (-10 °C to 50 C) |
| Dimension | 9.37 in x 1.88 in x 1.18 in (238 mm x 48 mm x 30 mm) |
| Weight | 0.24 lb (110 g) |
