Overview

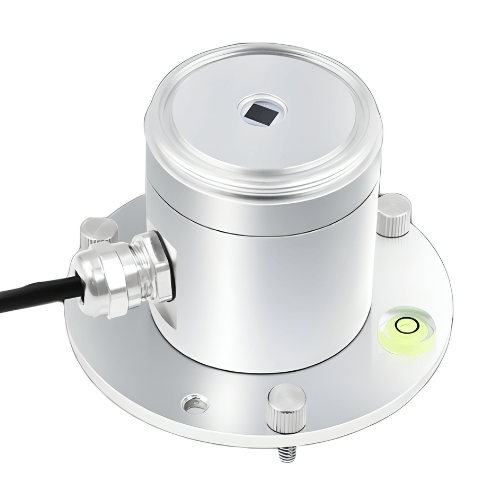

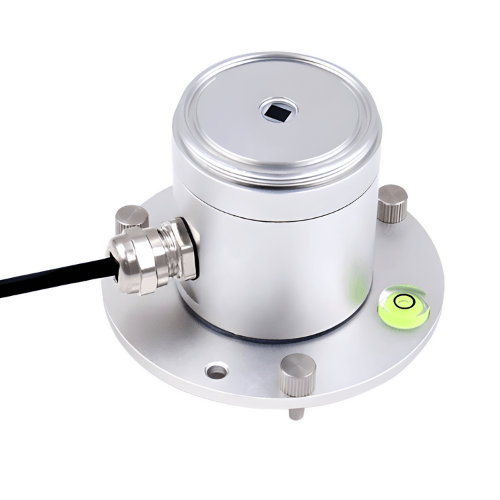

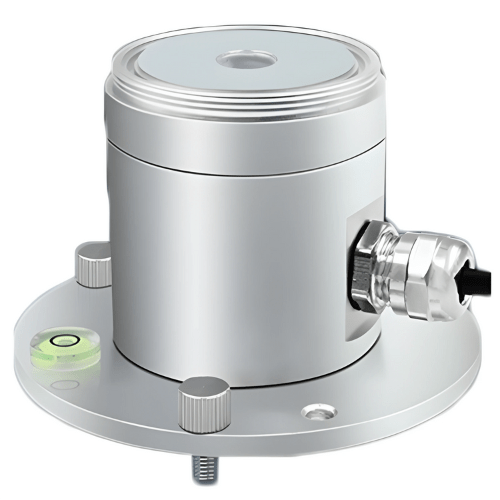

Enviro Test Construct Outdoor UV Radiometer is based on the principle that a photosensitive element converts ultraviolet light into a measurable electrical signal to realize online monitoring of ultraviolet light. The circuit uses American imported industrial-grade microprocessor chips and imported high-precision ultraviolet sensors to ensure the excellent reliability and high precision of the product. The integrated sensor of the product is integrated, and the measurement data is more comprehensive.
Features
- Adopt American imported industrial grade microprocessor chip
- Excellent reliability and high precision
- The light transmitting window is made of quartz glass, and the ultraviolet light transmittance exceeds 98 %
- Protect the equipment transport safety
- With horizontal bubble and calibration screw, convenient adjustment on site
Technical Specifications
| Accuracy | ± 10 % FS |
| Ultraviolet Intensity Range | 0 mW to15 mW |
| Measurement Wavelength Range | 290 nm to 390 nm |
| Response Time | 0.2 S |
| Linearity | ≤ ± 1 % |
| Annual Stability | ≤ ± 3 % |
| Resolution | 0.01 mW |
| Power Supply | 10 VDC to 30 VDC |
| Power Consumption | RS 485 0.06 W |
| Output Signal | 4 mA to 20 mA |
| Temperature | -13° F to 140° F (-25° C to 60° C) |
| Dimension | 0.47 in x 0.47 in x 0.94 in (12 mm x 12 mm x 24 mm) |
| Weight | 0.44 lbs. (0.2 kg) |
