Overview

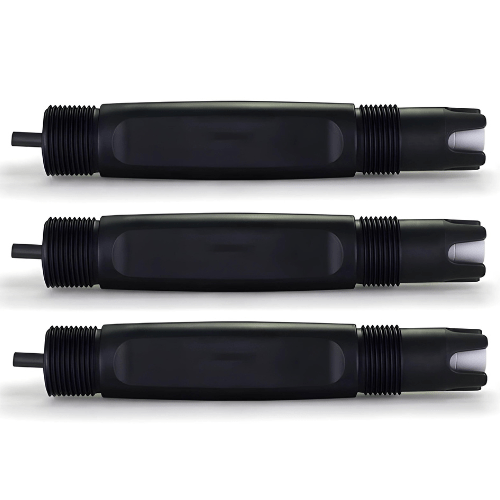

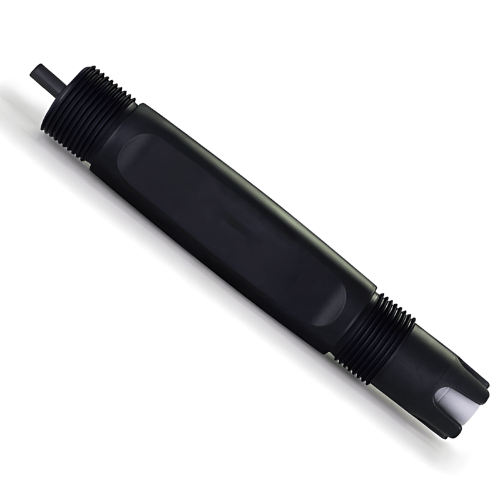

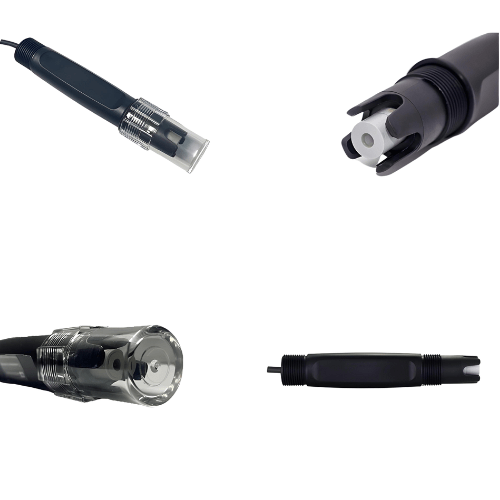

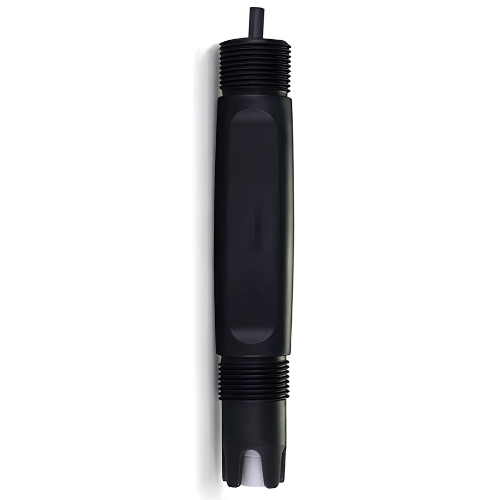

The Online Nitrate Ion Sensor is a kind of electrochemical sensor that uses membrane potential to measure the activity or concentration of ions in the solution. When it comes into contact with the solution containing the ions which are to be measured, it will generate contact with the sensor at the interface between its sensitive membrane and the solution. Ion activity is directly related to membrane potential. Ion selective electrodes are also called membrane electrodes. This type of electrode has a special electrode membrane that selectively responds to specific ions. The relationship between the potential of the electrode membrane and the ion content to be measured conforms to the Nernst formula. This type of electrode has the characteristics of good selectivity and short equilibrium time, making it the most commonly used indicator electrode for potential analysis.
Features
- Can be fast, simple, accurate and economical
- High measurement accuracy
- Not easy to block, anti-pollution
- Suitable for wastewater treatment in the semiconductor industry, photovoltaics, metallurgy
- High quality imported single chip, accurate zero-point potential
Technical Specifications
| Measuring Method | Ion electrode method |
| Housing Material | PP |
| Waterproof Rating | IP68 |
| Measurement Range | 0 mg/L to 1000 mg/L (Customisable) |
| Resolution | 0.1 mg per L |
| Accuracy | ± 2.5 % |
| Pressure Range | ≤ 0.3 Mpa |
| Calibration | Sample calibration, standard liquid calibration |
| Connection Methods | 4 core cable |
| Mounting Thread | NPT3 or 4inch |
| Application | General application, river, lake, drinking water environmental protection, etc. |
| Temperature Compensation | NTC10K |
| Cable Length | Standard 32.80 ft (10 m) cable or extend to 328.08 ft (100 m) |
| Temperature Range | 32 °F to 122 °F (0 °C to 50 °C) |
| Size | 1.18 in x 6.29 in (30 mm x 160 mm) |
