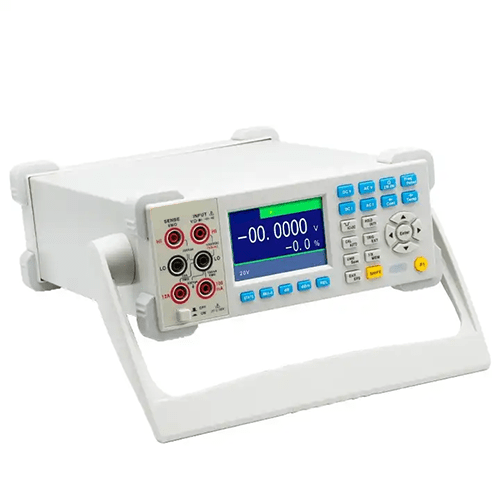

Enviro Test Construct Ohmmmeter

Overview

Enviro Test Construct ohmmeters are a full-featured, 199999 counting 5½ digits desk type true RMS digital multimeter with stable performance. The STM32 chip and external integration AD chip used by the meter offer strong overall functionality, excellent performance, and good experience for users; its 3.5 in (8.89 cm) large screen has clear displays of reading, rich content, and a good result of display. It is mainly powered driving which makes it highly reliable. Its comprehensive features, full-range overload protection and unique design make it the first choice for electricians and university laboratories. In addition, Enviro Test Construct ohmmeters are equipped with the calibration function which allows the user to calibrate according to actual needs and is simple and convenient.

Features

• 5½ digit resolution for precise measurements
• 5 in (8.89 cm) display with clear, content-rich readings
• Dual parameter displays for simultaneous measurement information
• Adjustable measurement speed: FAST, MID, SLOW
• Duty cycle measurement and square wave output functions
• Manual or automatic range setting for flexibility
• Communication interfaces: USB, RS232 with SCPI protocol
• Versatile measurements: AC or DC voltage, current, resistance
• Frequency measurement up to 20 MHz, capacitance measurement
• Automatic, external, and single trigger measurement options
• Keypad lock, customizable settings for user preferences
• Simple external calibration function for accuracy
• Mathematical functions: statistics, relative measurement, dB, dBm
• Additional features: on or off, diodes, reading or data hold, key tone

Technical Specifications
