Overview

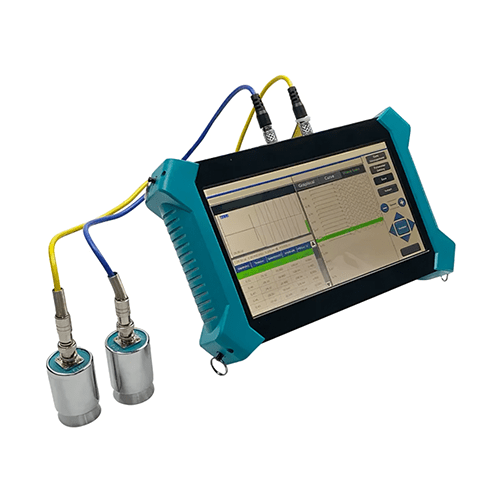

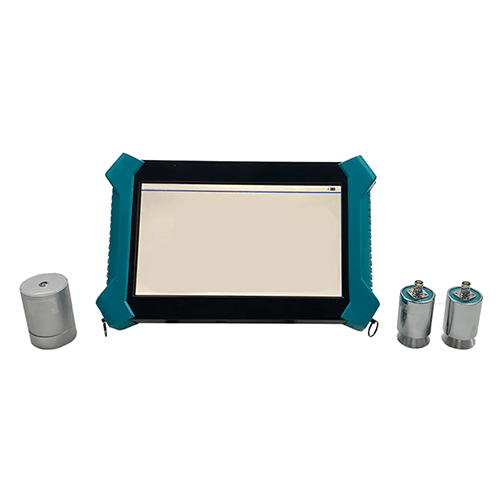

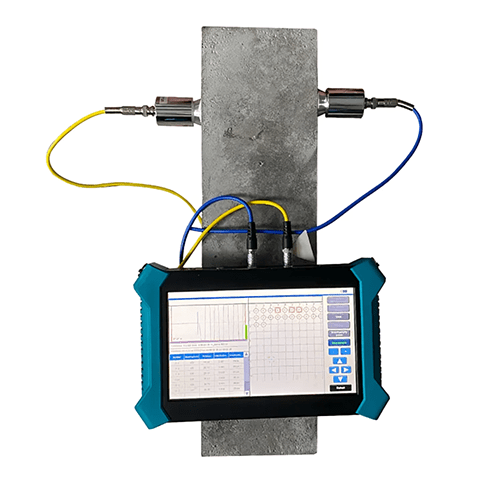

Enviro Test Construct Non-metallic ultrasonic crack detector uses ultrasonic transmission method for detecting pile and continuous wall integrity. It integrates five functions of pile testing, ultrasonic rebound comprehensive method for strength measurement, defect measurement, crack sounding and width measurement. Geological exploration, rock integrity, weathering evaluation test; mechanical properties of non-metallic materials such as rock mass and concrete.
Features
- New upgraded wireless cloud transmission function.
- Five functions of measuring pile, measuring strength, measuring defect, sounding depth and width measuring.
- Stable performance and powerful function, it is the best choice for users with diverse needs such as engineering inspection, teaching and scientific research.
- Semi-transparent, high-brightness, TFT color LCD screen.
- Full touch screen operation, simple and convenient, stable and reliable.
- Large memory capacity and working time of more than 10 hours.
- It can relate to the probe of digital display rebound instrument to measure the strength of ultrasonic rebound.
- U-disk transfers data and supports software upgrading through U-disk.
- Special analysis software is powerful; data analysis and processing, report generation, and report printing can be completed easily.
Technical Specifications
| Master Control Unit | Built-in A8 industrial control motherboard |
| Display | 10.1-inch, high brightness, TFT color LCD Capacitive Screen |
| Operational Mode | Touch screen |
| Storge Mode | Built-in Electronic Hard Disk(＞8GB) + Large Capacity U Disk |
| Data Transmission Mode | Wireless cloud transport (Options) |
| Acquisition Mode | Single-Channel Manual Point-by- Point Acquisition |
| Channel Number | 1 Transmit + 1 receive |
| Trigger Mode | Signal triggering |
| Sampling Period | 0.05 mμs to 409.6 mμs Multistage Options |
| Acoustic Time Accuracy | 0.05 μs |
| Acoustic Time Range | +1677700 mμs |

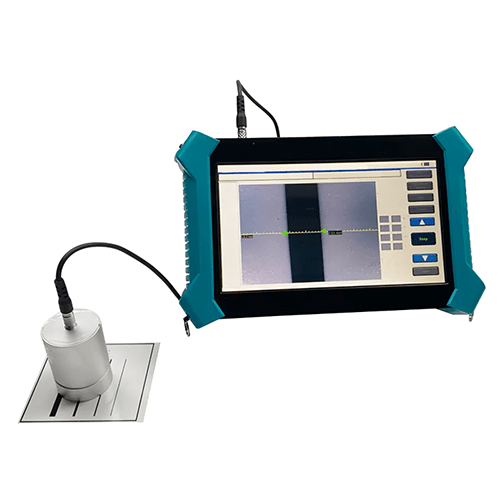

| Width Measuring Range | 0 in to 0.39 in (0 mm to10 mm); |
| Width Measurement Accuracy | 0.0004 in (0.01 mm) |
| Dynamic Range | 146 dB |
| Bandwidth | 1 kHz to 500 kHz |
| Receiving Sensitivity | Less than 10 UV |
| Gain Accuracy | 0.5 dB |
| Emission Voltage | 65 V, 250 V, 500 V and 1000 V gear adjustable |
| Communication Interface | USB, Bluetooth, Wi-Fi |
| Working Hours | More than 8 |
| Power Supply Mode | Built-in lithium battery External 220 V to 16 V AC/DC |
| Working Environment | Temperature: 14 °F to 104 °F (-10 ℃ to 40 ℃) Humidity: ＜90% RH |
| Dimension | 11.8 in x 7.87 in x 2.17 in (300 mm x 200 mm x 55 mm) |
