Overview

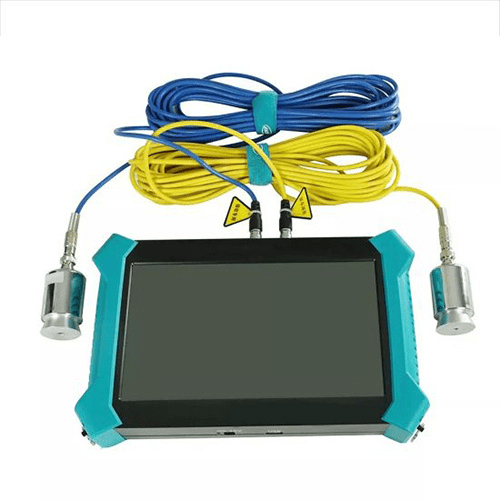

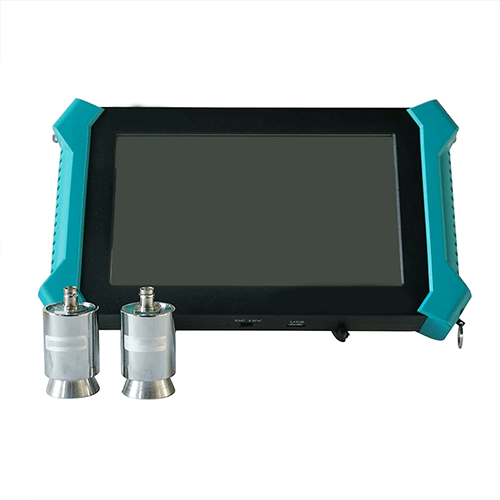

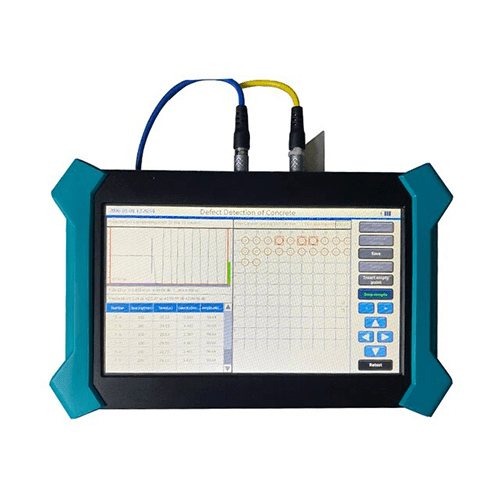

Enviro Test Construct Non-Destructive Testing Ultrasonic Crack Detector, a multifunctional device designed for precise structural assessments. Equipped with advanced ultrasonic technology, it efficiently measures the compressive strength of structural concrete, detects cracks with detailed depth and width analysis, and ensures the integrity of piles and continuous walls using the ultrasonic transmission method. Offering a five-in-one functionality, it conducts pile testing, employs the ultrasonic rebound method for strength measurement, detects and measures defects, and accurately assesses crack sounding and width. This versatile tool is indispensable for applications in geological exploration, weathering evaluation, and evaluating the mechanical properties of non-metallic materials like rock mass and concrete, providing a comprehensive solution for reliable structural analysis.
Technical Specifications
| Master Control Unit | Built-in A8 industrial control motherboard |
| Display | 10.1-inch, high brightness, TFT color LCD capacitive screen |
| Operational Mode | Touch screen |
| Storage Mode | Built-in Electronic Hard Disk (> 8GB) +Large Capacity U Disk |
| Data Transmission Mode | Wireless Cloud Transport (Options) |
| Acquisition Mode | Single-channel manual point-by-point acquisition |
| Channel Number | 1 transmit + 1 receive |
| Trigger Mode | Signal triggering |
| Sampling Period | 0.05 mµs to 409.6 mµs |
| Acoustic Time Accuracy | 0.05µ |
| Acoustic Time Range | 1677700 mµs |
| Measuring Range | 0 in to 0.4 in (0 mm to 10 mm) |
| Measuring Accuracy | 0.0004 in (0.01 mm) |
| Bandwidth (kHz) | 0 kHz to 500 kHz |
| Receiving Sensitivity (UV) | 146 |
| Gain Accuracy (dB) | Less than 10dB |
| Emission Voltage | 0.5V |
| Communication Interface | USB, Bluetooth, Wifi |
| Working Time | More than 8 Hours |
| Power Supply | Built-In Lithium Battery |
| Working Temperature | 14 °F to 104 °F (-10 °C to 40 °C) |
| Working Humidity | <90% RH |
| Dimensions | 11.81 in x 7.87 in x 2.17 in (300 mm x 200 mm x 55 mm) |
