Overview

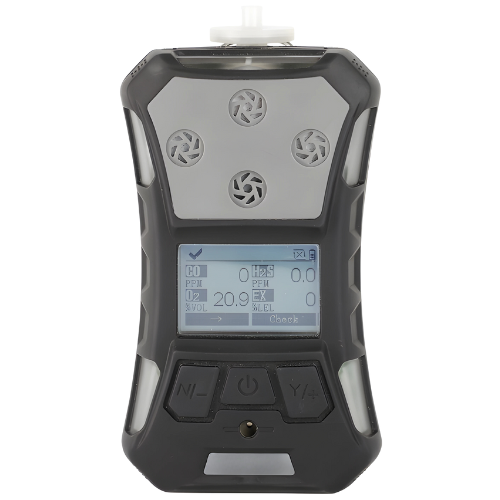

Enviro Test Construct NH3 gas detector is a high-performance portable gas detector that can detect multiple gases (volatile organic compounds VOC, combustible gas and toxic gas) at the same time and has man down alarm function. The device has humanized operation functions such as one-key security detection, one-key storage, automatic image flipping, as well as the man down alarm function.; With optional Bluetooth transmission function, allowing safety personnel to obtain real-time data and the alarm status. It has obtained international IECEX, ATEX explosion-proof certification and Chinese explosion-proof certification; As it passed the antistatic test, and the protection level reaches IP67; With safer product design and the module design which makes the detection faster, and the compact ergonomic design makes the device easy carrying; What’s more, the device is also a suction and diffusion dual-purpose instrument. The instrument is mainly working in suction mode. When the air pump fails or in special emergency situations, it can automatically switch to the diffusion sampling method, thereby improving the protection to a new Level.
Features
- Rugged and durable
- Explosion-proof circuit design, safe and reliable
- Multiple security protection
- Simultaneous measurement of multiple gases, multiple numerical display
- Powerful function, more user-friendly operation
Technical Specifications
| Sampling Method | Pump suction & diffusion dual-use type |
| Gas Type | H2S, Hydrogen Sulfide CO2, Carbon Dioxide O3, Ozone NH3, Ammonia etc. |
| Measure Range | Customized |
| Response Time | ≤ 30 seconds |
| Precision | ≤ ± 2 % F.S |
| Language | English |
| Automatically Test And Calibrate After Power-On | Including reset, maximum value (MAX), minimum value (MIN), STEL, TWA value |
| Unit | PPM and mg can be switched |
| Display | Monochrome graphics (160 in x 96 in) screen can be automatically flipped |
| Backlight | The backlight time can be manually set, and will be turned on automatically when an alarm is issued |
| Data Record | Can store 100,000 sets data, the storage interval is adjustable from 5 to 3600 seconds, data can be exported |
| Alarm | 95 dB buzzer, vibration alarm and flashing red LED and alarm status indication on the screen, alarm latched; Diagnostic alarm and battery undervoltage alarm, pump block alarm; Man, down alarm, with early warning and optional real-time remote Bluetooth notification function |
| Battery | 3.7 V rechargeable lithium battery, battery capacity 2200 mA |
| Working Hours | More than 15 hours in continuous pumping mode |
| Charger | Travel charger with DC interface, charging time ≥ 4 hours |
| Explosion-Proof Grade | IECEX/ATEX (II IG Ex ia IIC T4 CNEX:Ex ia IIC T4 Ga |
| Certification (EU Regulations) | 2004 or 108 or EC(EMC) 1995 or 5 or EC (Radio) 94 or 9 or EC (ATEX) |
| Protection Grade | IP67 |
| Working Temperature | -4 ℉ to 122 ℉ (-20 ℃ to +50 ℃) |
| Humidity | 0 % RH to 90 % RH (no condensation) |
| Environmental Pressure | 86 Kpa to 106 Kpa |
| Size | 6.18 in × 3.32 in × 2.34 in (157 mm x 84.5 mm x 59.5mm) |
| Weight | 0.80 lb (0.365 kg) including battery, belt clip and filter |
