Overview

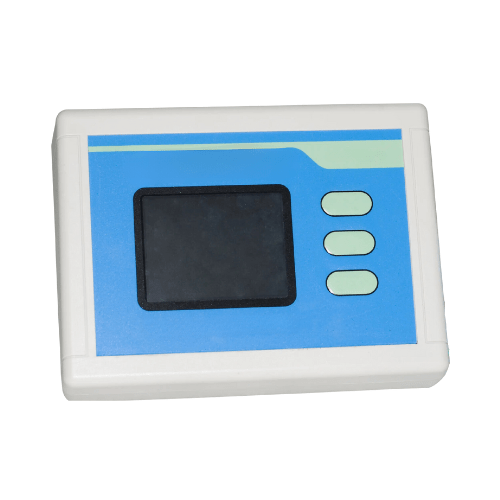

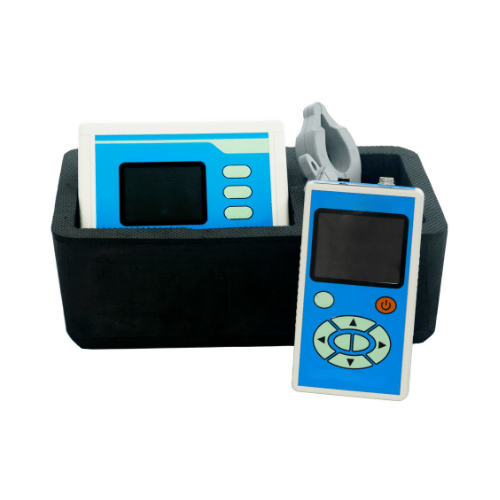

Enviro Test Construct multiple portable DC grounding fault detector is developed and manufactured by using phase advance processing technology and data transfer algorithm technology. This product is between the two types of on-line and portable, the use method is portable, and the performance is on-line. The instrument has the characteristics of high detection sensitivity, strong anti-interference ability, small volume, light weight and easy to use. When finding the grounding fault of DC system, it is not necessary to disconnect the power supply, and the grounding point can be located. The instrument can detect the grounding resistance and grounding direction of DC system and provide a reliable and high accuracy detection instrument for the search and location of grounding fault in power DC system.
Features

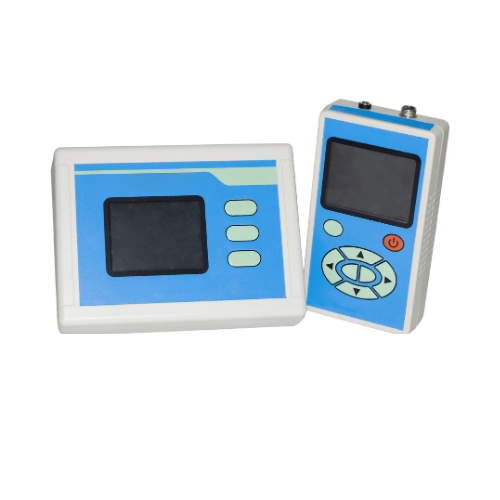

- Divided into transmitter and receiver
- Solves all faults
- Completely eliminates DC grounding fault
- Accurately indicates current direction
- Accurately detect the size and phase
- Fault current spectrum analysis function
- System to ground voltage measurement function
- Output power <0.15 W
- Ripple analysis and digital oscilloscope function

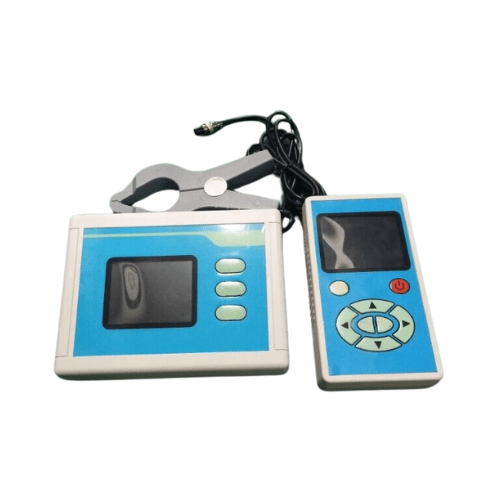

- Intelligent current clamp
- Can adapt to AC and DC
- Solves mutual fault of different poles
- Detects faults in storage battery
- No need to install, cut off power
- Waveform curve display function
Technical Specifications
| Working voltage | 12 V (working voltage of lithium battery is 9.6 V to 12.6 V) |
| Detection range of branch grounding resistance | 0 kΩ to 300 kΩ |
| Branch grounding resistance measurement accuracy | 0 kΩ to 100 kΩ ≤ 10 ％ ± 2 kΩ 100 to 300 kΩ display specific value |
| Leakage current detection sensitivity | less than 0.1 mA |
| Measurement accuracy | 100 % |
| Alarm mode | voice, graphics, data, grounding direction |
| Power consumption | less than 1 W |
| Working power supply | lithium battery (12 V 3100 mAh rechargeable) |
| Suitable temperature | 14 °F to 122 °F (-10 °C to 50 °C) |
| Size | 7.08 in x 3.93 in x 1.57 in (180 mm x 100 mm x 40 mm) |
| Weight | 3.330 lb (1.5 kg) |
