Overview

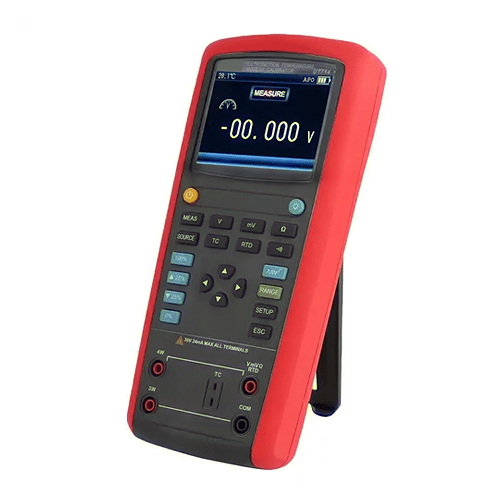

Enviro Test Construct multifunctional temperature process calibrator thermocouple is powerful temperature calibrator that sources and measures thermocouples, RTDs, voltage and resistance. It can be used to test and calibrate different types of temperature instruments. This device is suitable for testing input or output temperature terminals such as sensors and transmitters.
Features
- Step or ramp functions
- Source and measure accuracy up to 0.02%
- Rechargeable battery
- Contrast adjustment
- Auto power off (Time adjustable)
- Stores and recalls setups
- USB Communications
Technical Specifications
| Measurement | |
| DC voltage | 50 mV or 500 mV or 30 V ± (0.02% + 2) |
| Resistance | 500 Ω or 5000 Ω ± (0.05% + 10) |
| RTDs | Pt100 or Pt200 or Pt500 or Pt1000 or Cu10 or Cu50 or Cu100 or Pt100 to 392 or Pt100-JIS or Ni 120 |
| Source | |
| DC voltage | 100 mV or 1000 mV or 10 V ± (0.02% + 10) |
| Resistance | 400 Ω or 4000 Ω ± (0.05% + 10) |
| RTDs | Pt100 to 385 or Pt100 to 392 or Pt100-JIS or Pt200 to 385 or Pt1000 to 385 or Cu10 or Cu50 or Cu100 or Ni120 |
| Display count | 20000 |
| Power | 1.2 V x 6 AA rechargeable battery |
| Operating Temperature | 14 °F to 131 °F (-10 °C to 55 °C) |
| Product Size | 7.68 in x 3.74 in x 2.28 in (195 mm x 95 mm x 58 mm) |
| Product Net Weight | 1.43 lb (650 g) |
