Overview

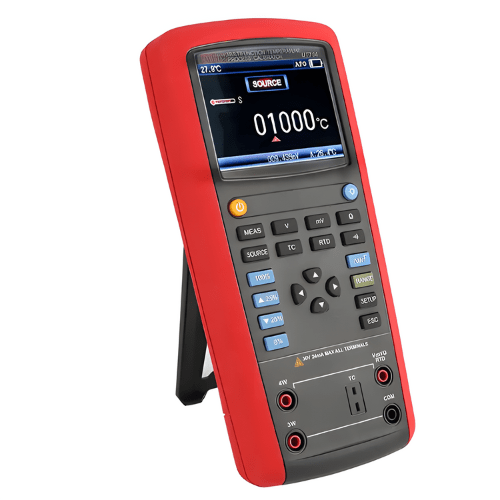

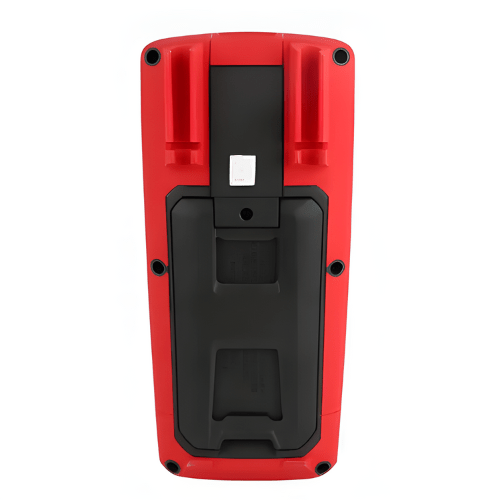

Enviro Test Construct multifunction rechargeable temperature process calibrator is powerful temperature calibrator that sources and measures thermocouples, RTDs, voltage, and resistance. It can be used to test and calibrate different types of temperature instruments. This device is suitable for testing input or output temperature terminals such as sensors and transmitters.
Technical Specification
| DC Voltage | 50 mV or 500 mV or 30 V ± (0.02% +2) 100 mV or 1000 mV or 10 V ± (0.02% +10) |
| Resistance | 500 Ω or 5000 Ω ± (0.05% +10) 400 Ω or 4000 Ω ± (0.05% +10) |
| Thermocouples | R, S, K, E, J, T, N, B, L, U |
| RTDs | Pt 100 or Pt 200 or Pt 500 or Pt 1000 or Cu 10 or Cu 50 or Cu 100 or Pt 100-392 or Pt 100-JIS or Ni 120 |
| Display count | 2000 |
| AC Voltage | 200 V or 600 V |
| Function | AC DC current voltage test |
| Power | 1.2 V x 6 AA rechargeable battery |
| Operating temperature | 14 °F to 131°F (-10 °C to 55 °C) |
| Size | 7.67 in x 3.74 in x 2.28 in (195 mm x 95 mm x 58 mm) |
| Weight | 1.43 lb (650 g) |
