Overview

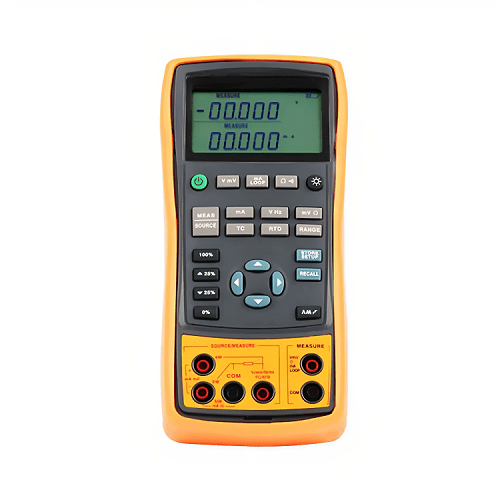

Enviro Test Construct multifunction process calibrator is lightweight and easy to use, this powerful process calibrator allows users to source and measure a wide variety of process parameters and test process devices. Capable of measuring and sourcing mA, volts, RTDs and thermocouples, frequency, ohms, and pressure, the calibrator features a large backlit display and rugged design.
Features
- Small, streamlined shape makes it easy to carry
- Rugged, reliable design stands up to field use
- Easy to read measure or source screen
- Measure volts, mA, RTDs, frequency, and ohms to test sensors and transmitters
- Source or simulate volts, mA, RTDs, ohms, and pressure to calibrate transmitters
- Measure or source pressure using any of 29 Fluke 700 Pxx Pressure Modules
Technical Specifications
| Loop Power | Voltage 24 V Accuracy 10% Maximum current 22 mA |
| Step | Steps 25% of range 100% of range |
| Battery | Type 4 x AA |
| Operating altitude | 9842.52 ft (3 km) |
| Operating temperature | 14 °F to 131 °F (-10 °C to 55°C) |
| Storage temperature | -4 °F to 159.8 °F (-20 °C to 71°C) |
| Dimensions | 5.1 in x 9.3 in x 2.4 in (130 mm x 236 mm x 61 mm) |
| Weight | 1.43 lb (650 g) |
