Overview

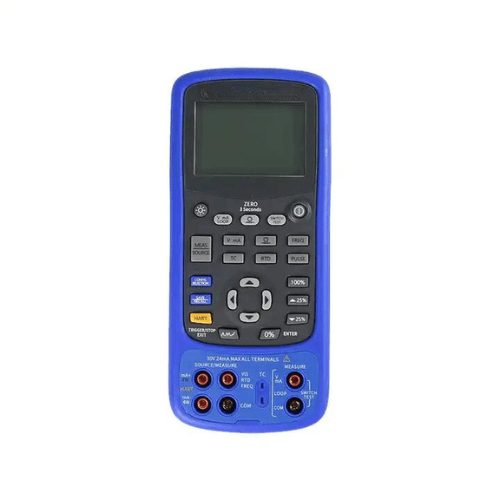

Enviro Test Construct multifunction process calibrator is well designed and is suitable for process industries that focuses on wide workloads and calibration capabilities. It can measure and simulate almost all process parameters with high precision, and accurately calibrate almost all process parameters. It is also suitable for higher metrology requirements.
Features
- Accurately measure and stimulate output performance
- Wide measurement range and output capacity
- Two independent channels
- Allows simultaneously measure, output
- View process signals
- Measure signals voltage , mA, RTD
- Thermocouple , frequency , pulse ,resistance
- Output and simulate these signals for transmitter calibration
- Use synchronized pressure measurements to output mA signals
- To perform valve and lP testing
- Use auto step and autoramp function
- Quick perform linearity tests
- Use 24 V loop power to power the transmitter
- HART communication function, 232 and Bluetooth
Technical Specifications
| Voltage | 0 mV to 100 mV , 0 mV to 20 mV , 0mV to 30 mV |
| Current | 0 mA to 24 mA |
| Voltage (TC) | -10 mV to 75 mV |
| Resistance | 5 Ω to 400 Ω , 400 Ω to 4000 Ω |
| Frequency | 2 CPM to 1000 CPM , 1Hz to 1000Hz |
| Loop power function | 24 V |
| Pulse measurement | 0 to 10000 |
| Pulse output | 0 to 10000 |
| Use time | 30 hrs |
| Power | 5 AA alkaline batteries |
| Thermocouple | 34.16 °F (1.2 °C) |
| Thermal resistance | 32.27 °F (0.15 °C) |
| Size | 8.18 in x 3.74 in x 1.77 in (208 mm x 95 mm x 45 mm) |
| Weight | 1.34 lb (610 g) |
