Overview

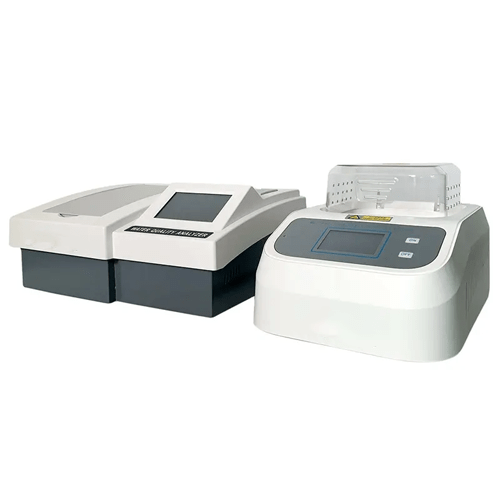

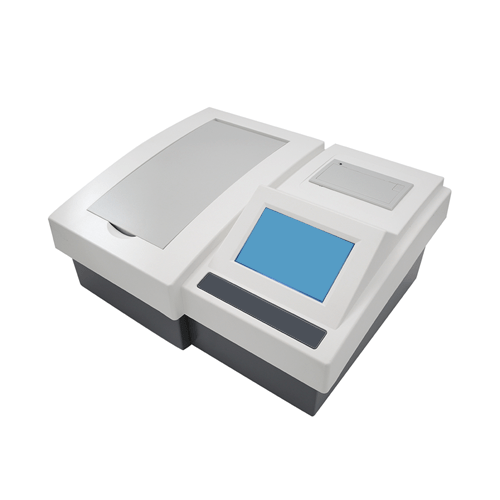

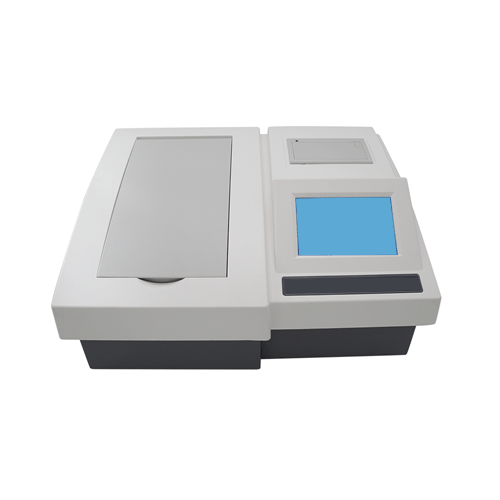

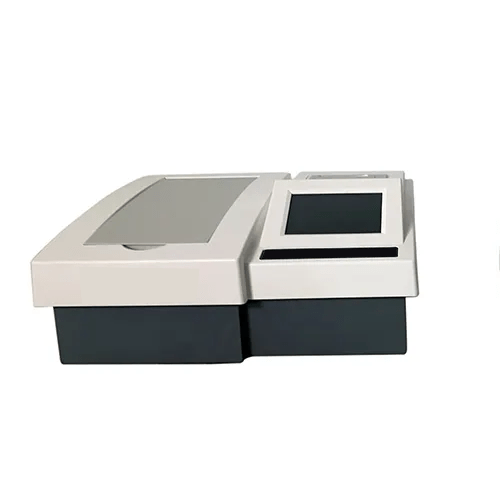

Enviro Test Construct Multi-Parameter Analyzer is a high-performance water quality analyzer the instrument is equipped with a 4.3-inch LCD screen and a flat UI design interface, which can display the detection data more intuitively. The guided detection mode reduces the learning cost, and users can easily and quickly start the operation, the instrument is equipped with prefabricated reagents and do not require users to mix multiple detection reagents, but only need to add water samples for detection.
Features
- Analyze COD, ammonia, phosphorus, nitrogen
- Multi-parameter water testing
- Accurate detection, Complies with national standards
- Light: Imported cold source, lasting 100k hours
- Printing: Setup auto or manual printing of concentration results
- Continuous detection of High-performance
- Efficient analysis for numerous samples
- Equipped with consumable reagents, low price and low dosage
- Prefabricated reagents: Simplifies analysis
- Just add sample for water quality
- Digestion, colorimetric integration; no dish change, simple, efficient
- 3″ LCD, self-developed UI, simple, timesaving
Technical Specifications
| Test Parameter: Cod | |
| Measurement Standard | Hj/T399 – 2007 |
| Measurement Range | 0 Mg/L To 15000 Mg/L |
| Lower Limit | 5 Mg/L |
| Digestion Temperature | 329 °F (165 °C), 20 Min |
| Detection Time | 25 Samples/ Min |
| Indication Error | ≤5% Or ±4 Mg/L |
| Test Parameter: Ammonia Nitrate | |
| Measurement Standard | Hj535 – 2000 |
| Measurement Range | 0 Mg/L To 100 Mg/L |
| Lower Limit | 0.05 Mg/L |
| Digestion Temperature | N/A |
| Detection Time | 30 Samples/ Min |
| Indication Error | ≤5% Or ±0.1 Mg/L |
| Test Parameter: Total Phosphorus | |
| Measurement Standard | Gb11893 – 89 |
| Measurement Range | 0 Mg/L To 20 Mg/L |
| Lower Limit | 0.02 Mg/L |
| Digestion Temperature | 302 °F (150 °C), 15 Mins |
| Detection Time | 25 Samples/Min |
| Indication Error | ≤5% Or ±0.04 Mg/L |
| Test Parameter: Total Nitrogen | |
| Measurement Standard | Chromo Tropic Acid |
| Measurement Range | 0 Mg/L To 200 Mg/L |
| Lower Limit | 0.25 Mg/L |
| Digestion Temperature | 248 °F (120 °C), 30 Mins |
| Detection Time | 25 Samples/Min |
| Indication Error | ≤5% Or ±0.4 Mg/L |
| Power Supply | Ac (220 V ±5%), 50 Hz |
| Display Mode | 4.3-Inch Colour Lcd |
| Colorimetric Method | Colorimetric Tube (Digestion Colorimetry Integration) |
| Other Functions | Connected With Pc |
| Temperature | 41 °F To 104 °F (5 °C To 40 °C), ≤85% Non-Condensing |
| Dimensions | 11.81 In × 9.05 In × 4.52 In (300 Mm × 230 Mm × 115 Mm) |
| Weight | 6.17 Lb (2.8 Kg) |
