Overview

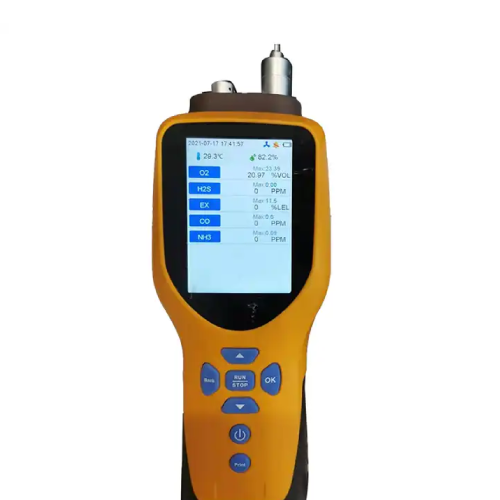

Enviro Test Construct Multi Gas Analyzer is a portable and versatile device. It offers flexible configuration options, accommodating up to 5 gas sensors or 3 gas sensors combined with 1 dust sensor. Leveraging advanced gas sensor technology and cutting-edge nanometre semiconductor advancements, this series excels in rapidly and accurately detecting gas and dust concentrations concurrently. Our product lineup maintains a leading position within the domestic market, renowned for its exceptional stability and repeatability.
Features
- Connect to printer for output
- Detect temp/humidity on-site or in pipes
- Detection, Storage, Printing, Display, Pumping
- High-power pump for negative pressure, stable sensor readings
- Protection against voltage, charge, static, magnetic interference
- Auto calibration, 6-level sensor calibration, data recovery
- Chinese/English modes
- Temp/humidity compensation
- Dust-proof, suitable for tough conditions
Technical specifications
| Scalable Gas Sensor | Users can customise 1 gas to 5 gas sensors in any combination. Please refer to the sensor parameters. |
| Dust Sensor | Laser dust sensor (0.3 um, 0.5 um, 1.0 um, 2.5 um, 10 um) |
| Humidity Detection Range | 0% RH to 100% RH |
| Pumping | Built-in high-power pump |
| Detection Pattern | 53% FS |
| Linearity Error | 1% FS |
| IP Rating | IP 66 |
| Power | 4000 mA high-capacity polymer rechargeable battery |
| Temperature Detection Range | -40 °F (-40 °C) |
| Dimensions | 8.66 in x 3.46 in x 2.17 in (220 mm x 88 mm x 55 mm) |
| weight | 1.10 lb (500 g) |
