Overview

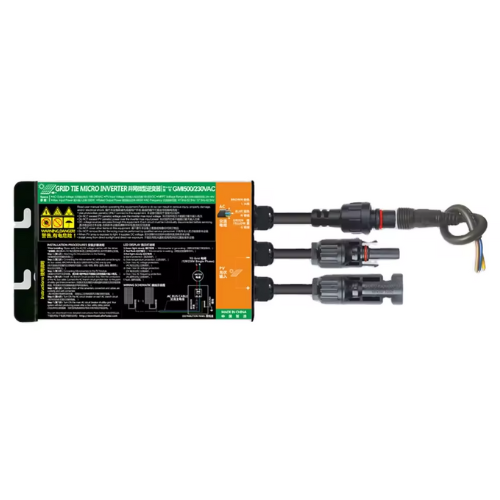

Enviro Test Construct MPPT Solar Grid Tie Micro Inverter is a compact unit,which directly converts direct current into alternating current for powering appliances and/or office equipments and connecting to utility grid.The AC output from Smart Micro inverter is synchronized and in-phase with the utility grid.
Technical Specifications
| Maximum Output Power | 500 W or 600 W or 700 W |
| Rated Output Power | 490 W or 580 W or 650 W |
| Dc Input | 18 V to 50 V |
| Ac Output Voltage | 180 V to 260 V |
| Frequency Range | 50 Hz or 60 Hz Auto |
| Recommended Pv Panel Voltage | Vmp 30 V to 39 V Voc 38 V to 46V |
| Solar Panel Power | maximum 500 W 600 W 700 W |
| Output Waveform | Pure Sine Wave |
| Weight | 2.09 lbs (0.95 kg) |
