Overview

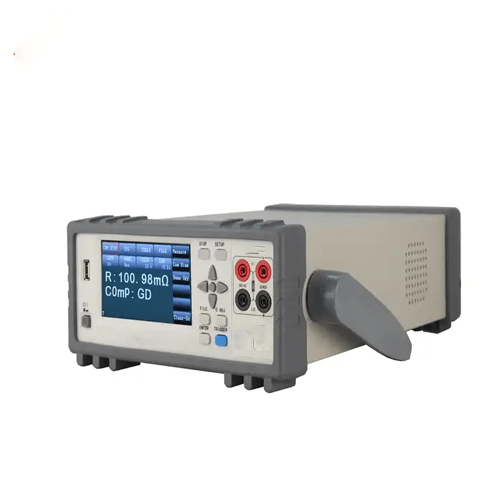

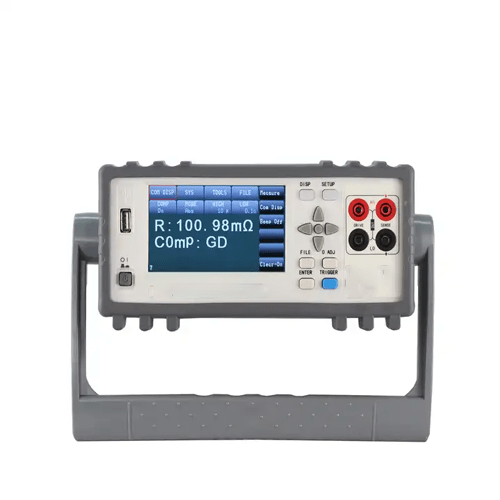

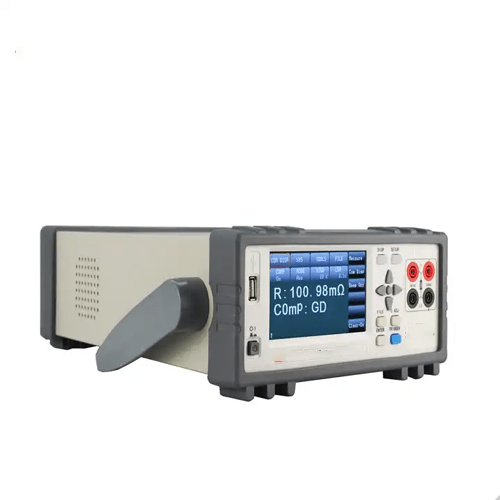

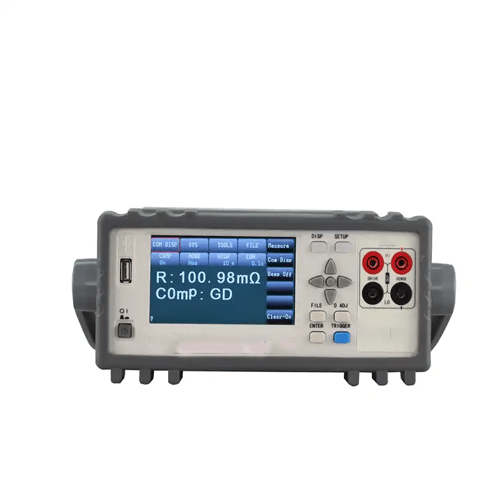

Enviro Test Construct micro–ohm meter is a high precision DC resistance tester. It can be used to detect coil, inductance, transformer, motor, relay contact resistance, connector resistance, fuse, cable resistance, printed circuit resistance, welding hole resistance, conductive film, metal flaw detection and so on. It is a low resistance tester with high speed, high precision and high performance. It can meet the quality assurance of production line, import inspection and laboratory measurement, and can be applied to the test of automatic equipment.
Features
- High-performance 32-bit processor
- Color TFT display 4.3 in (10.92 cm)
- Save results on U disk
- Maximum accuracy 0.05%
- Built-in comparator
- Extensive file storage
- USB software updates
- FAT16 or FAT32 support
- Multiple interfaces available
Technical Specification
| Display Type | Digital only |
| Accuracy Class | 0.05% +2 dgt |
| Usage | Copper resistance, relay, switch |
| Range | 1 μΩ to 20 kΩ |
| Parameters | DC Resistance |
| Display | Digital display |
| Measurement Speed | Fast: 22, Medium: 42; Slow: 102 |
| Operating Temperature | 32 °F to 104 °F (0 °C to 40 °C) |
