Overview

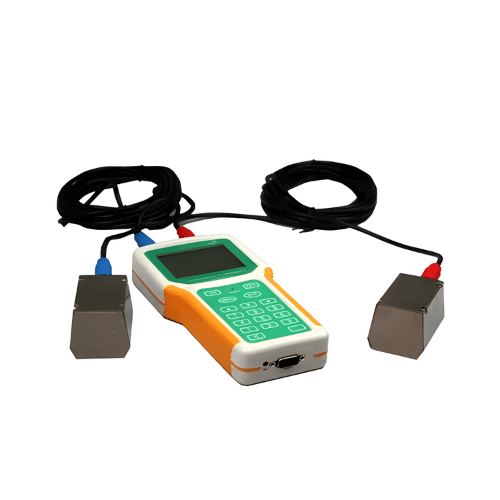

Enviro Test Construct Liquid Ultrasonic Flow Meter is a handhold portable transit-time ultrasonic flow meter with clamp-on transducers for non-invasive liquid measurement. Our microprocessor based, user-friendly, field-programmable flow measurement technique allows no interruption of the process flow and has low installation costs.
Features
- Four-line LCD display with flow rate, totalizer and signal condition
- The flow meter is designed for high accuracy ±0.5%
- Small size and light weight
- Wide range, velocities
- Ni-MH Battery life for up to 10 hours continuous operation
- Transducers for pipe sizes of 15mm to 6000mm
Technical Specifications
| Power | AC 220 (100 V to 240 V), 50 Hz or 60 HZ, 0.6 A |
| Power Supply | Build-in Battery (>12 hour) |
| Output | OCT, RS232, Data Storage Device |
| Error | ±1.0% R (Flow Rate>0.5 m/s ±0.005 m/s (Flow Rate<0.5 m/s) |
| Sensitivity | Minimum Flow Rate 0.01 m/s |
| Repeatability | 0.2% R |
| Accuracy | 0.50% |
| Application | Liquid |
| Normal Diameter | DN25 to DN3000 |
| Display | LCD |
