Overview

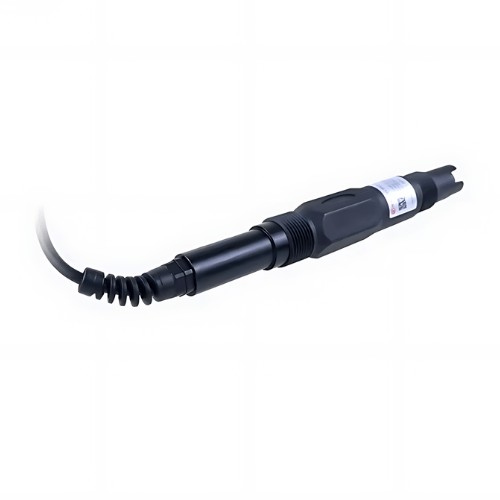

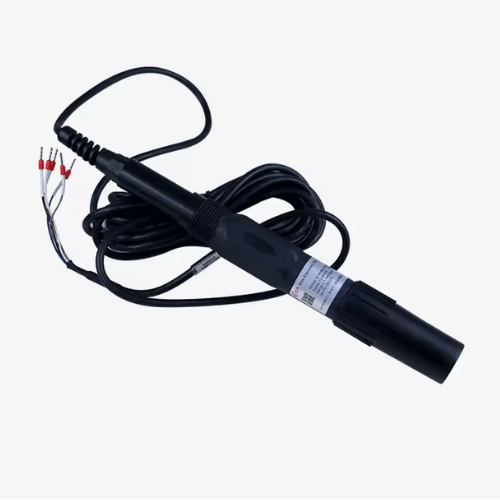

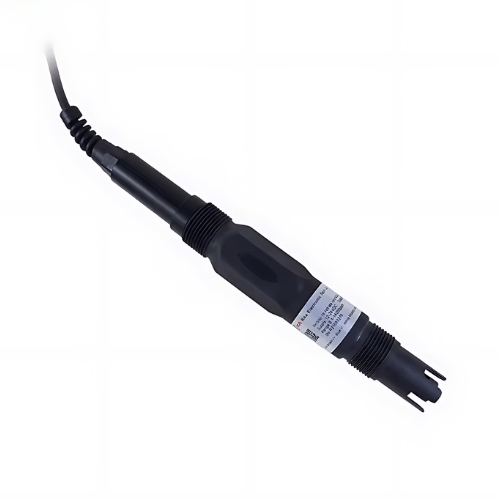

Enviro Test Construct ion sensor meter tester can be used to determine the mass of nitrate ions (NO3-) in water. Animals that rot in water or waste from the factory can increase nitrate ions in the water. RK500-16 Nitrate ion (NO3-) sensor is widely used in industry, environmental protection, education, Internet of Things and other industries or flow cell installation, and NO3- and temperature measurement at the same time.
Features
- High performance sensitive film
- Automatic temperature compensation
- PC and stainless-steel housing
- Simple operation and high reliability
- No external module, a whole design
- NO3- and temperature measurement at the same time
- Immersion in water or pipe installation
Technical Specifications
| PH | Range: 0.1 pH to 14000 pH Resolution, 0.01 % F S Accuracy: 0.001 ppm |
| Temperature | Range: 32 °F to 122 °F (0 °C to 50 ℃) Resolution, 32.5 °F (0.3 °C) Accuracy: 32.1 °F (0.1 °C) |
| Output | RS485 and 4 mA to 20 mA at the same time |
| Pressure Resistance. | 0 bar to 3 bar |
| Power Consumption | < 0.4 W |
| Probe Material. | PC + 316 L |
| Ingress Protection | IP68 |
| Cable Length | 16.4 ft (5 m) default, other length optional |
| Humidity | < 90 % RH |
| Temperature Compensation | 32 °F to 140 °F (0 °C to 60 ℃) |
| Operating Temperature | 32 °F to 176 °F (0 °C to 80 ℃) |
| Size | 5.6 in x 5.6 in x 4.7 in (150 mm x 203 mm x 72 mm) |
| Weight | 1.9 lb (0.5 Kg) |
