Overview

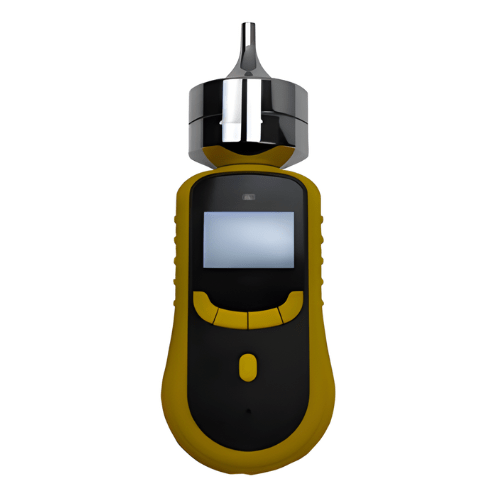

Enviro Test Construct hydrogen sulfide gas detector multi gas analyzer gas analyser gas monitor system gas leak detector to measure Carbon monoxide hydrogen sulfide oxygen methane carbon dioxide CO H2S O2 CH4 CO2 gas with pump built-in.
Features
- Using imported high-precision sensor
- 100,000 sets of data can be stored, storage interval available set, minimum 5S,
- LCD can display the type of gas, the gas unit, gas concentration values etc
- English operation interface
- Gas concentration unit PPM, mg per m3 can quickly switch the display
- Built-in micro sampling pump, the pump suction size ten stalls adjustable
- Shell with high-strength special engineering plastics, non-slip, waterproof, dustproof
Technical Specifications
| Gas Detected | Carbon monoxide hydrogen sulfide oxygen methane carbon dioxide CO H2S O2 CH4 CO2 |
| Detection Principle | Catalytic combustion principles (CH4) Infrared principles (CO2)Electrochemical principles (CO, H2S, O2) |
| Sampling Method | Pump- suction, flow up 1L per min, pump suction size ten stalls adjustable |
| Data Logger | 100,000 sets of data can be stored, storage interval available set, minimum 5 S, can be browsed |
| Measure Range | CO (0 ppm to 1000 ppm), H2S (0 ppm to 100 ppm), O2(0% VOL to 30% VOL), CH4 (0% LEL to 100% LEL), CO2 (0 ppm to 5000 ppm) |
| Resolution | 0.1ppm (0 ppm to 1000 ppm),0.01 ppm (0 ppm to 100 ppm) 0.01% VOL (0% VOL to 30% VOL) 0.01% LEL (0% LEL to 100% LEL),1 ppm (0 ppm to 5000 ppm) |
| Precision | 2% FS |
| Response Time | ≤ 10 S |
| Repeatability | ≤ ± 1% |
| Zero Shift | ≤ ± 1% (F.S per Year) |
| Explosion-Proof | Exia II CT4 |
| Alarm Mode | Sound, light, vibration |
| Recovery Time | ≤ 10 S |
| Linearity Error | ≤ ± 1% |
| Display | LCD |
| Gas Unit | Multiple gas unit |
| Humidity | 0% RH to 95% RH |
| Degree Of Protection | IP66 |
| Operating Time | 100 hours (off pump) |
| Temperature | -40 °F to 158 °F (-40 ℃ to 70 ℃) |
| Dimensions | 8.07 in x 2.95 in x 1.26 in (205 mm x 75 mm x 32 mm) |
| Weight | 0.66 lb (0.3 kg) |
