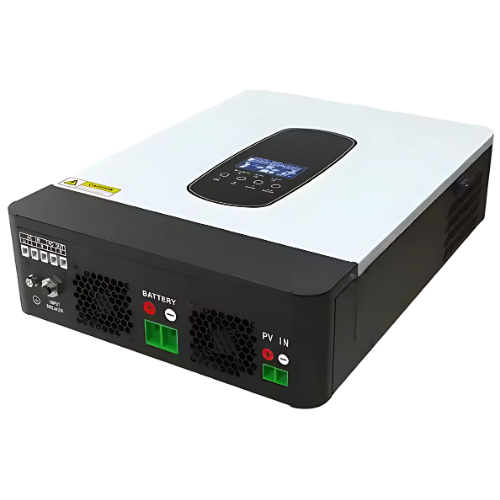

Enviro Test Construct Hybrid Solar Inverter with MPPT 80A Charger WIFI Optional
Enviro Test Construct Hybrid Solar Inverter with MPPT 80A Charger WIFI Optional - Image 2

Enviro Test Construct Hybrid Solar Inverter with MPPT 80A Charger WIFI Optional

Versatile power system with 2000W max PV array, 50-60Hz frequency range, 12VDC battery, 60A max charge current, and overcharge protection at 15.5VDC.

SKU: ETCI-218 Category:

Technical Specifications

Voltage230 VAC
Selectable Voltage Range170 VAC to 280 VAC (for personal computers)
90 VAC to 280 VAC (for home appliances)
Frequency Range50 Hz to 60 Hz (Auto sensing)
Battery Voltage12 VDC
Floating Charge Voltage13.5 VDC
Overcharge Protection15.5 VDC
Maximum Charge Current60 A
Max.Pv Array Power2000 W
Mppt Range@ Operating Voltage55 VDC to 450 VDC
Maximum PV Array Open Circuit Voltage450 VDC
Size15.9 in x 11.25 in x 3.85 in (40.5 cm x 28.6 cm x 9.8 cm)
Net Weight13 lbs (6 kg)
