Overview

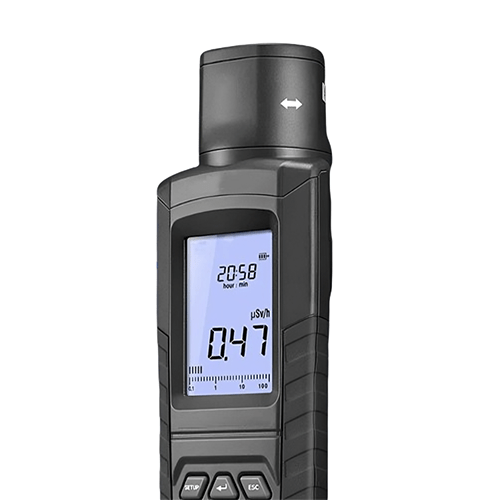

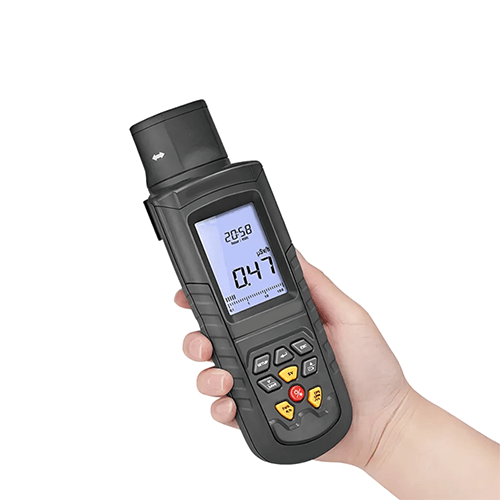

Enviro Test Construct Household Portable Digital Dosimeter Radiation has a measuring range of 0.01 sv/h-1000 sv/h, and has a 4-digit LCD large screen.
Technical Specifications
| Type Of Measuring Ray | a, β, Y and X-rays |
| Measuring Range (Automatic Range Selection) | Radiation dose rate: 0.01 sv/h to1000 sv/h |
| Sensitivity | 108 pulses or 1000cpm/mr/hr under the background of cobalt-60 ray environment with energy of 1sv/h |
| Accuracy | <10% (below 500 sv/h)< 20% (above 600 sv/h) |
| Ray Selector Switch | yes β YX ray for combination selection |
| Sensor | Halogen fill detector (GM Geiger counter) |
| Output Port | Bluetooth wireless data transmission (space transmission distance 10m) |
| Average Time | Manually or automatically adjustable between 2 and 120 seconds |
| Display | Large screen 4-digit digital LCD with bar graph display can display the following data: Radiation dose rate, pulse dose rate cumulative radiation dose value cumulative pulse dose value time date, alarm value maximum radiation dose rate radiation type measurement dynamic icon instrument internal battery power indication, etc. |
| Alarm Function | The alarm value can be set freely, and the default setting is 5 μ Sv/hr |
| Normal Natural Environment Radiation | Less than 0-0.2usv/h |
| Value Storage Function | It can automatically store 4000 data and record a set of data every minute (including real-time date, time, measurement value and measurement unit) |
| Bluetooth Data Transfer | 1 set of data is transmitted every second (including real-time date, time measurement value and measurement unit) |
| Software | Data real-time remote transmission display analysis and recording |
| Detector Operating Temperature | 32 °F to 122 °F (0 ° C to 50 ° C) |
| Weight | (0.2 kg) 0.45 lb |
| Size | 7.8740 in ×2.7559 in ×1.7717 in (200 mm x 70 mm x 45 mm) |
| Power Supply | Four 1.5 V “AA” alkaline batteries |
| Quality Certification | European CE, US FCC-15 |
