Overview

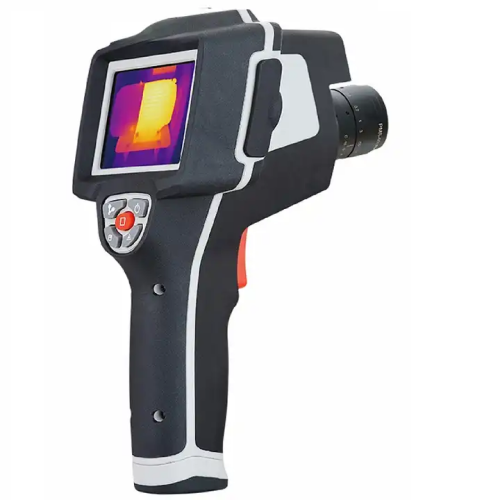

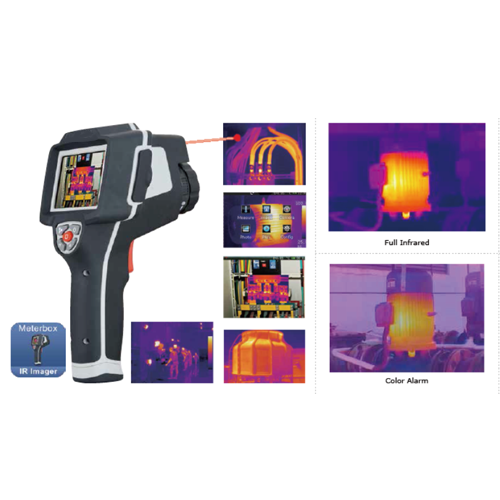

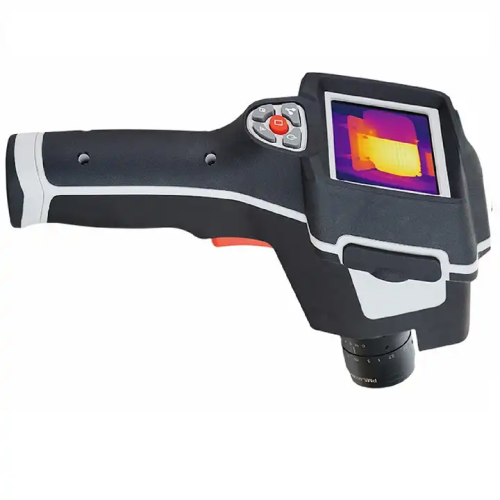

Enviro Test Construct high temperature short wave thermal imager is high performance for 800 nm to 1100 nm infrared image, which is for temperature measurement above 1112 °F (600 ℃). Short wave thermal imager is widely used for continuous inspection of High-temperature industrial furnaces, such as the petrochemical industry, paper pulp, etc.
Feature
- High resolution 640 pixels x 512 pixels
- Wide Temperature Range targeting electrical and industrial applications
- ±2% Accuracy for reliable temperature measurement
- Thermal imaging through the glass or other transparent medium
- Capacitive touch screen is easier, more productive, and more effective to operate it
- Lithium polymer rechargeable battery lasts >4 hrs continuous use
- Replaceable
- High performance with a built-in Linux system
Technical Specifications
| Field of view | 22° × 17.6° |
| Spatial resolution | 0.6 mrad |
| Thermal Sensitivity | <33.8 ℉ (1 ℃) at 1112 ℉ (600℃) |
| Image Frequency | 30 Hz |
| Focus mode | Fixed |
| Focal length | 0.984 in (25 mm) |
| Focal Plane Array (FPA)/Spectral range | Wide Dynamic Range CMOS/0.8 μm to 1.1μm |
| IR resolution | 640 pixels × 512 pixels |
| Display | Capacitive Touch screen, 3.5 in LCD |
| Image modes | IR image |
| Accuracy | ±35.6 ℉ (±2 ℃) or±2% of reading |
| Line | 2 lines (horizontal and vertical) |
| Area | 3 boxes with max/min/average |
| Automatic hot /cold detection | Auto hot or cold spot meter markers |
| Emissivity correction | Variable from 0.01 to 1.0 |
| Measurement Corrections | Emissivity, ambient temperature, distance, relative humidity, offset temperature |
| Storage Media | 4 GB Micro SD card |
| Video Storage Format | Standard MPEG-4, 640 x 480 at 30 fps, on memory card >60 min |
| Video Storage Mode | IR / visual images; simultaneous storage of IR and visual images |
| Image Storage Format | Standard JPEG, including measurement data, on a memory card >1000 pictures |
| Image Storage Mode | IR images |
| Set-up commands | Local adaptation of units, language, date and time formats, information of camera |
| Languages | Multinational |
| USB | Data transformation between camera and PC |
| Battery | Lithium polymer battery, 4.5 hrs operating time |
| Input Voltage | DC 9 V to 12 V |
| Charging System | In camera (AC adapter) |
| Power Management | Automatic shutdown and sleep mode (user-selectable) |
| Dimension | 9.567 in x 4.055 in x 6.300 in (243 mm x 103 mm x 160 mm) |
| Weight | 2.03 lb (920 g) |
| Object Temperature Range | 1112 ℉ to 632 ℉ (600 ℃ to 2000 ℃) |
