Overview

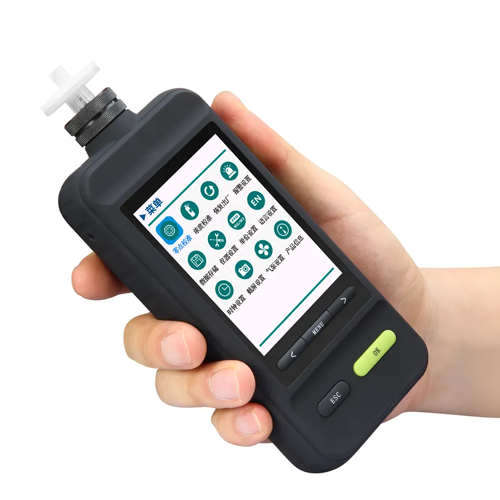

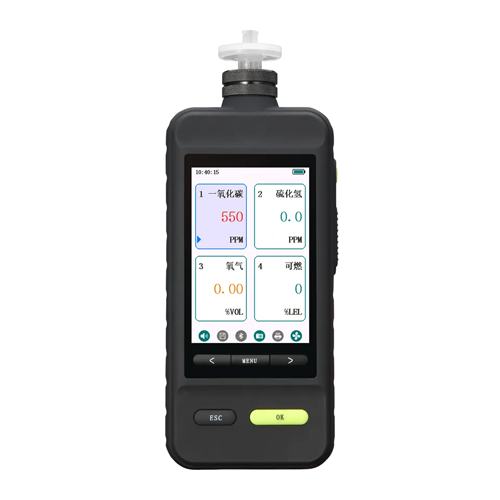

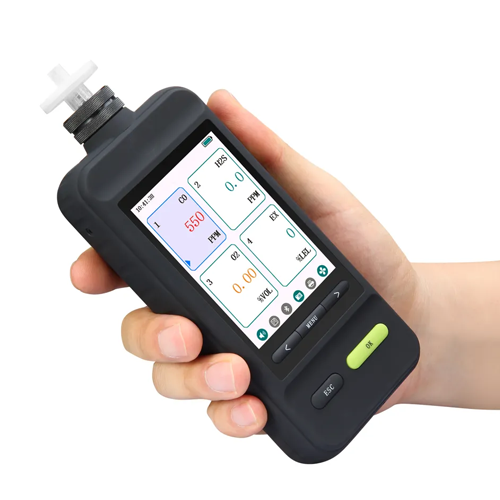

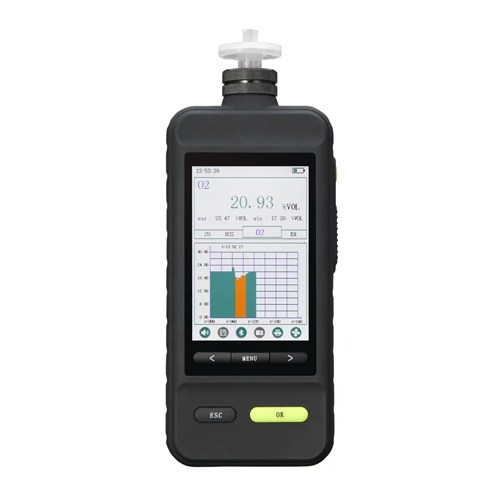

Enviro Test Construct High Precision VOC Gas Detector Meter is a ppb-level wide-spectrum handheld volatile organic compound (VOC) gas detector. The high-precision PID photo ion principal sensor is used to improve the detection accuracy and response time. The detection range is 1 ppb to 10000 ppm. The wireless module can realize wireless data transmission and remote monitoring with the console. With CF Correction coefficient: built-in more than 450 kinds, customers can customize 10 kinds. It can be widely used in environmental protection,occupational health, emergency rescue, industrial safety, petroleum and petrochemical industries.
Features
- Detects and displays one or more gases simultaneously
- 3.5 in (88.9 mm) high-definition color screen: Offers a wide 120° view
- Features a double-layer pipeline with internal PTFE layer
- Allows 360-degree bendability and resists deformation
- Specially designed flashlight button: Enhances user convenience
- Pinhole type one-key recovery button: Facilitates easy recovery
- Enables compactness and lightweight portability
Technical Specifications
| Detecting gas | VOC |
| Sensors | PID |
| Measure range | 1 ppm to 10000 ppm |
| Resolution | 1 ppb |
| Display | formula, unit, measurement value, time, battery, alarm status, data recording status, historical data curve, pump working state, alarm status, etc. |
| Sampling | Built-in pump suction sampling, select high-quality micro pump, small noise and vibration. Suction can reach 1 l/min. |
| Alarm | Buzzer, low battery alarm, White flash and alarm status on display |
| Data storage | Various storage way is optional, large capacity of 8G memory card are optional. Support one key download function, optional PC storage software download and analysis data, storage data format diversification, |
| Data transmission | USB interface data transmission, with the upper computer software, can download and print data, support the memory card transmission data in one key |
| Print function (Optional) | Optional with internal portable printer or external Bluetooth printer |
| Print content (Optional) | Text, graphics, one-dimensional code, two-dimensional code, curves, characters, etc. |
| Charger | Standard Mini-USB charging port. The commonly used car charger, mobile power supply and common mobile phone charging line can be charged for it |
| Language | Chinese/English |
| Wireless network (optional) | Bluetooth, Zigbee |
| Network frequency | 2.4 G high frequency. |
| wireless transmission distance | Bluetooth is less than 393.7 in (10 m), and the ZigBee outdoor single point is less than 1968.5 in (500 m) |
| Size | 10.62 in x 2.95 in x 1.61 in (270 mm x 75 mm x 41 mm) |
| Weight | 0.88 lb (400 g) |
