Overview

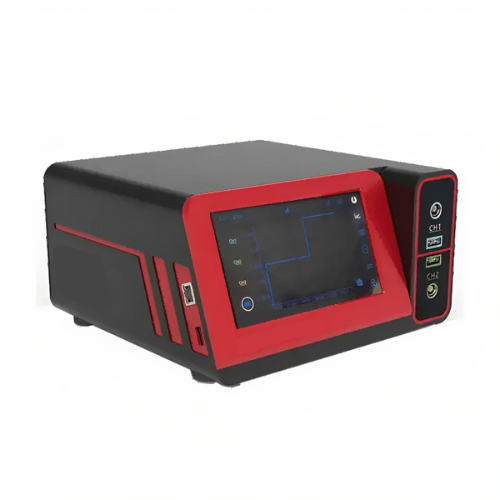

Enviro Test Construct high precision temperature oven is a new generation of multi-channel super thermometer specially developed for the field of temperature measurement calibration and precision temperature measurement. It highly integrates high-accuracy electrical measurement technology, intelligent interaction technology, and industry needs, and comprehensively solves the measurement and calibration needs of laboratory and field temperature sensors.
Features
- Support double standard platinum resistance (SPRT)
- double standard thermocouple (STC)
- Support for the editing
- Configuration of the parameters of TC, PRT and thermistor sensor
- Support for thermistor (0 K to 400 K)
- Support temperature transmitter (0 mA to 20 mA or 4 mA to 20 mA)
- Provide historical data, statistical data, curve data and other data display forms
- Support voltage, resistance, temperature and other data format storage and output
- The RTD supports automatic current switching
- Eliminating the EMF thermal potential error
Technical Specifications
| Number of channels | 3 input channels (CH 1 or CH2 or CH3) |
| Resolution | 0.00018 °F (0.0001°C) |
| Accuracy | 7 ppm (For SPRT at 32 °F (0 °C)) |
| Sampling rate | up to 1 S once |
| Data storage | Built-in 8 G storage space, can be connected to an external U disk |
| Operation display | 7 in (178 mm) HD touch screen |
| Communication protocol | RS 232 or WLAN |
| Temperature sensor | Resistance (Pt or Cu or Ni) (Pt 25 or Pt 100 or CuX or NiX) Thermocouple (K or N or J or E or T or R or S or B or We3 or We5) Thermistor (0 K to 400 K) Temperature transmitter (0 mA to 20 mA or 4 mA to 20 mA) |
| Size (mm) | 10.63 in x 10.23 in x 5.6 in (270 mm x 260 mm x 142 mm) |
| Weight | 5.51 lb (2.5 kg) |
