Overview

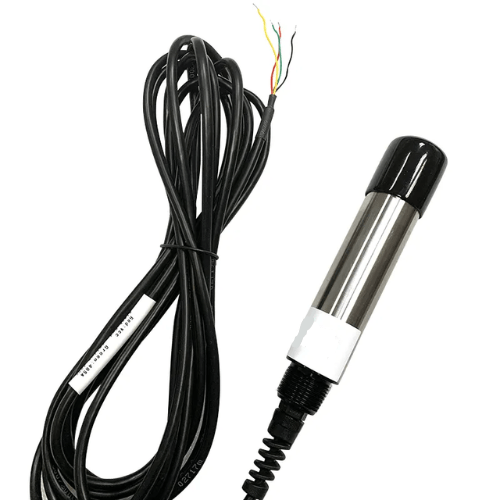

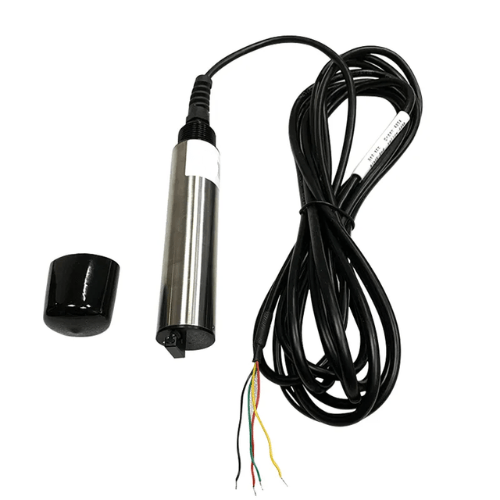

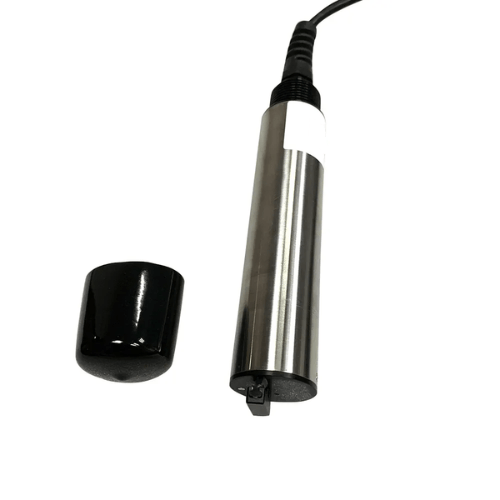

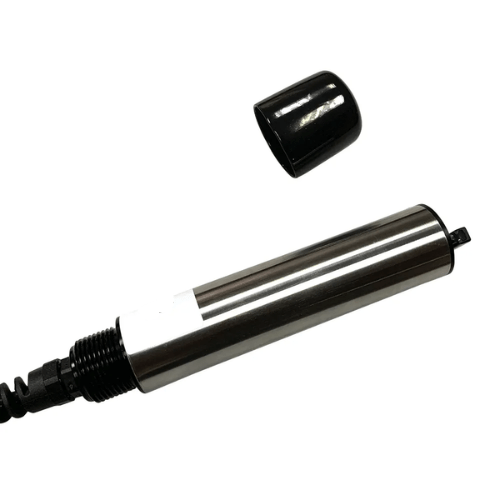

Enviro Test Construct high performance portable turbidity Sensor adopts 90°scattering light principle, RS485 and standard Modbus, with a good advantage of wide range, self-cleaning and free maintenance; It can be used to measure turbidity value of backwash water in filter tank, raw water and sedimentation tank in waterworks, monitoring the water quality in industrial production and regular water monitoring for surface water, groundwater and pipe network.
Features
- Optical measuring window
- Cleaning wiper
- Body shelf stainless steel
- Waterproof connector
Technical specifications
| Measuring Range | 0.01 to 4000 NTU |
| Measuring Accuracy | 0 to 10 NTU：±0.1 NTU 10 to 100NTU：reading value±2% or ±0.1 NTU take the bigger one 100 to 4000 NTU reading value ±5% |
| Resolution | 0 to 10 NTU：0.01 NTU；10 to 100 NTU：0.1 NTU；100 to 4000 NTU：1 NTU |
| Power | DC 12 to 24 V, average current < 30 mA |
| Storage Temperature | -20 °F to +60 °F |
| Working Temperature | 0 to 50 °F |
| Pressure Range | ≤1 PSi |
| Size | 1.25 in × 6.41 in (length) |
| Weight | 0.24 lb |
