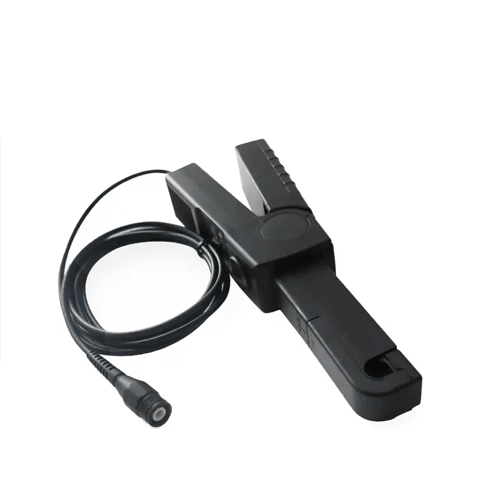

Enviro Test Construct High Performance Current Probe Clamp

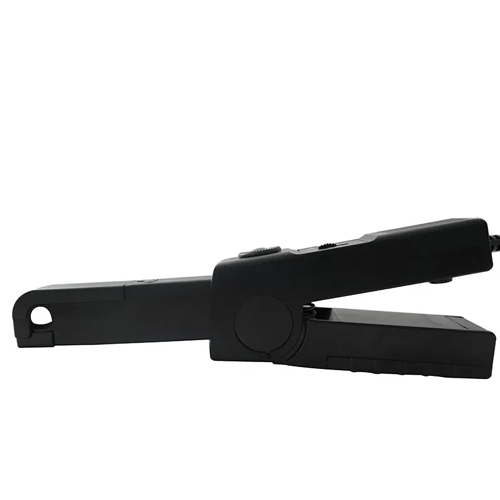

Enviro Test Construct High Performance Current Probe Clamp - Image 2

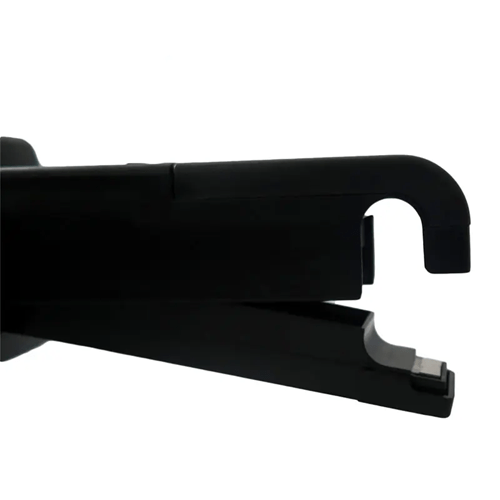

Enviro Test Construct High Performance Current Probe Clamp - Image 3

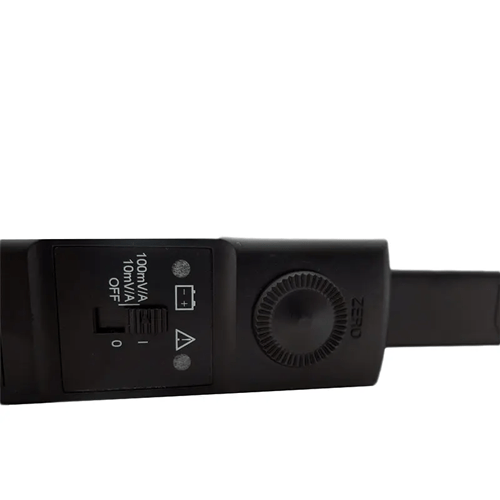

Enviro Test Construct High Performance Current Probe Clamp - Image 4

Enviro Test Construct High Performance Current Probe Clamp

This High-Performance Current Probe Clamp has current range of 50 mA to 10 A peak value, error of output signal of 3% + 5 mV and battery of 9 V alkaline.

SKU: ETCDCCM-202 Category:

Technical Specifications

Current Range50 mA to 10 A peak value
Range Sensitivity100 mV/A
Error Of Output Signal3% + 5 mV
Frequency RangeDC-100 KHz Amplitude frequency characteristic
Phase ShiftDC to 65 Hz: < 1.5°
Phase Frequency CharacteristicReference Figure 4
Load Characteristics1 MO < 100 pF
Insertion Impedance0.01 Q
Noise6 mV or 600 uv
Conversion Rate0.3 V/us 20 mV/ us
Rise Fall Time< 3.5 US
Transient ResponseReference Figure 5
Fang Bo ResponseReference Figure 6 (50 Hz/200 mA)
Figure 7 (1 KHz/200 mA)
Figure 8 (10 KHz/200 mA)
Working VoltageMaximum 600 Vrms
Common Mode VoltageMaximum 600 Vrms
Battery9 V Alkaline battery
Low Battery IndicationWhen 6.5 V, LED is green otherwise close
Overload IndicationRed LED indicates that the measuring current is too large to change the measuring
range
Size9.09 in × 2.63 in × 1.14 in (231 mm x 67 mm x 29 mm)
