Overview

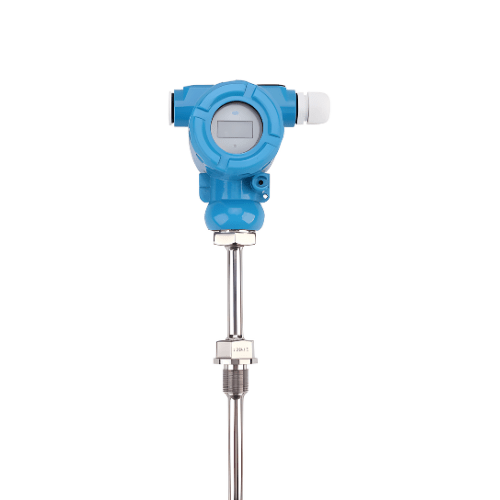

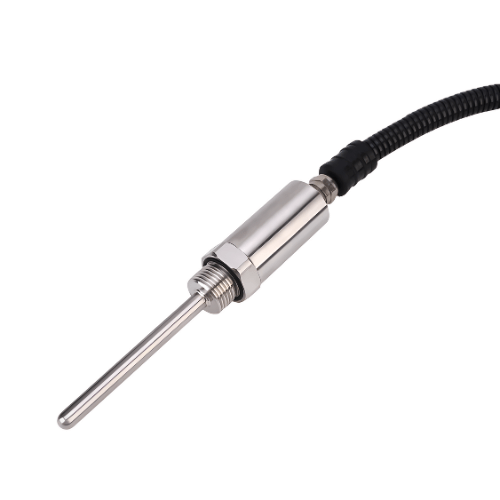

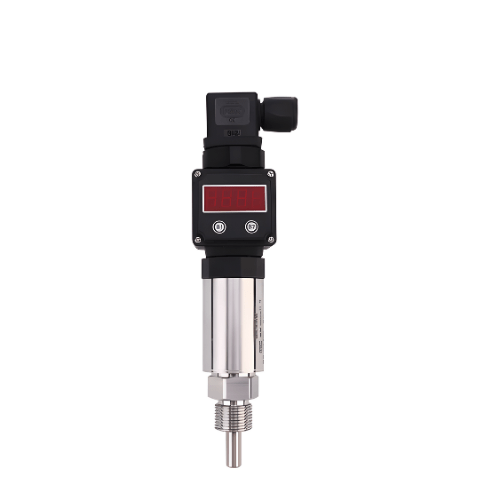

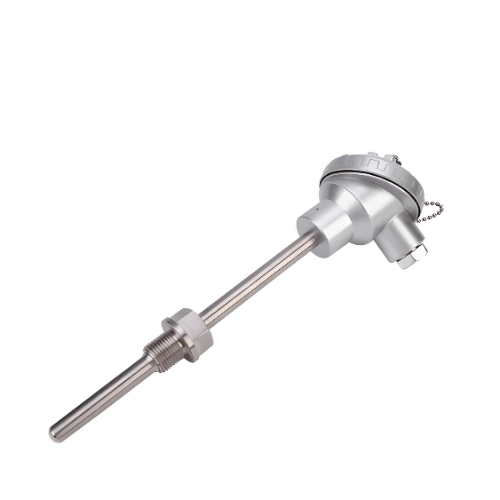

Enviro Test Construct High Accuracy Thermometer Transmitter Measurement is composed of a temperature sensor and a signal converter. The signal converter is installed in the cold end connecting box of the temperature sensor. The temperature sensor is affected by the temperature to produce a differential voltage signal.
Features
- Temperature sensor
- A signal converter
- Current signal
- Voltage signal
Technical Specifications
| Power Supply | 12 V DC to 32 V DC |
| Output Signal | 4 mA to 20 mA, 0 V to 5 V DC, 0 V to 10 V DC optional |
| Precision | 0.1% or 0.2% or 0.5%, optional |
| Display Method | LCD or LED display |
| Environment Temperature Effect | 0.25% per 50 °F (10 ℃) |
| Thermometric Element | Pt100, CU50, S, B, R.E, K, J, T optional |
| Protective Tube Diameter | Φ4, Φ16, Φ18, Φ20, Φ22, Φ28, Φ35, Φ40 Alternative |
| Connecting | Without fixing device, fixed screw-thread, movable screw thread, movable flange, fixed flange GB/ANSI standard, optional |
| Insert Length | 50 or 100 or 150 or 200 or 300 or 400 or 500 or 750 or 100 or appointed |
| Protective Tube Material | iCr18Ni9Ti, ceramics, High alumina or corundum tube |
| Connecting Box Material | Cast aluminum alloy, stainless steel, blast proof connection box |
| Protective Level | IP65 |
| Response Time | 90 s to 180 s, 30 s to 90 s, 10 s to 30 s, 4.2 s, 2.4 s,1.3 s, optional |
| Environment Humidity | 95% RH, Non-condensing |
| Measure Range | 328 °F to 2912 °F (-200 ℃ to 1600 ℃) |
| Operation Temperature | 40 °F to 185 °F (-40 ℃ to 85 ℃) |
