Overview

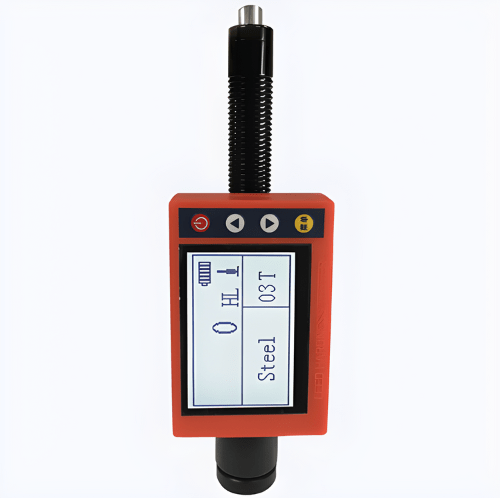

Enviro Test Construct High accuracy D impact device metal leeb pen type hardness tester, also known as a pen type hardness tester, is based on the Leeb hardness measurement principle and can easily and quickly detect the hardness of various metal materials on the spot, supporting free conversion between various hardness systems such as Leeb, Brinell, and Rockwell. It has an integrated and exquisite design, small size, easy to carry, high integration, stable and reliable performance, and supports data transmission, printing and storage functions. It is widely used in metal processing and manufacturing industry, special equipment, failure analysis of sexual components, commodity inspection, and other fields. It is particularly suitable for on-site hardness testing of large parts and non-detachable components. It is a professional precision instrument that improves the production qualification rate and saves costs.
Technical Specifications
| Calibration Function | Three calibration functions of Richter, Rockwell and Brinell |
| Test Capability | Conventional hardness tester measurement |
| Measuring Range | (150 to 960) D (171 to 68.5) HRC (77 to 651) HB(83 to 976) HV (26.4 to 99.5) HS(59.6 to 99.6) HRB |
| Indication Error | +6HLD(HLD=760) |
| Indication Repeatability | 6 HLD ( HLD=760) |
| Test Direction | 360° |
| Hardness System | HL HRA HRC HRB HB HV HS HSD |
| Identifiable Impact Device | D |
| PC Communication | Have |
| Store | Have |
| Statistics | Have |
| Power Supply | Lithium battery charging 3.7 v/300 ma |
| Overall Dimension | 5.91in x 1.57in x 1.77 in (150 mm x 40 mm x 45 mm) |
| Weight | 0.24 lb ( 110g ) |
| Standard Configuration | Host impact device integrated standard hardness block charger nylon brush support cup |
| Optional | Various special-shaped support cup standard hardness block communication software |
