Overview

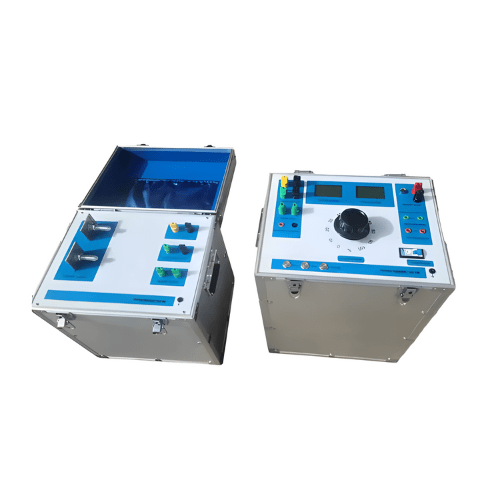

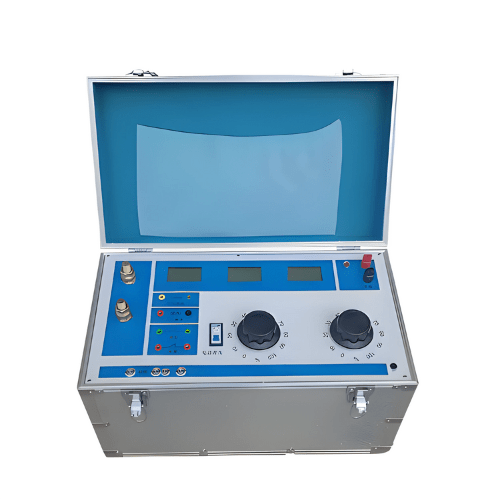

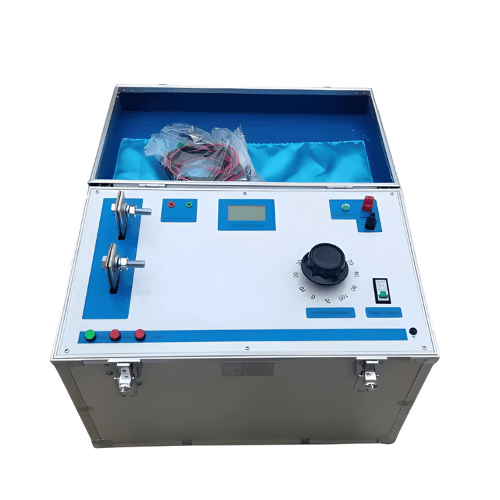

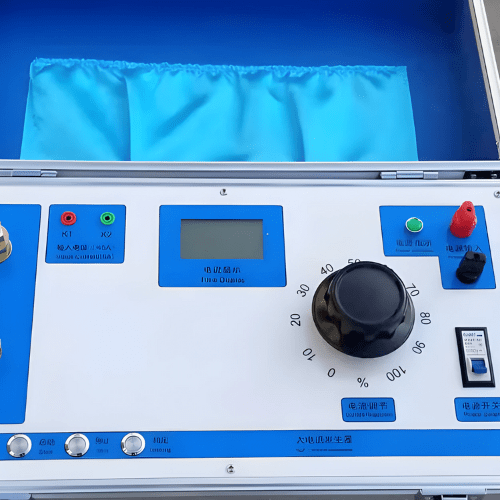

Enviro Test Construct primary current injection heavy duty temperature rise is widely used in power plants, distribution substations, electrical appliances manufacturing, scientific research, laboratories and other units.
Features
- Wide output current range, strong load capacity
- Solid structure, good seismic performance
- Timing function, automatic stop current output
- Polarity judgment indicator light and buzzer, clear indication
- Variable ratio function: by reading one or two side current values, the variable ratio can be calculated
Technical Specifications
| power | Electronic |
| output current | 0 A to 1000 A |
| power | 5 KVA |
| primary ammeter measurement | 0 A to 2000 A |
| secondary ammeter measurement | < 5 A |
| power supply voltage | AC 220 V ± 10 % |
| working humidity | <80% RH, no condensation |
| Application | Test Thermal relay, switch, transformer |
| Feature | Wide range of output current |
| Input Current | 22.7 A |
| Working Temperature | 14 ℉ to 104 ℉ (-10 °C to 40 ℃) |
